WOODWARD 9907-006 Serial governor

Product ID： 9907-006
Brand： WOODWARD
Place of origin： The United States
Goods status： new/used
Delivery date: stock
The quality assurance period： 365 days
Phone/WhatsApp/WeChat：+86 15270269218
Email：xiamen2018@foxmail.com
Tags：WOODWARD 9907-006 Serial governor
Get the latest price：Click to consult

WOODWARD 9907-006 Serial governor

The WOODWARD 9907-006 is powered by voltage supply connections to the generator potential transformers (PTs). It uses a standard 120 Vac or 208/230 Vac, 50/60 Hz input. The WOODWARD 9907-006 can use the same voltage connections to the generator PTs as the electronic governor's load sensor.

Power consumption of the synchronizer is 5 W maximum.

1. Connect the generator PT neutral to synchronizer terminal 5 (Figure 2-1).

2. Connect one phase of the generator PT (usually phase A) to synchronizer terminal 2.

3. Connect the same phase from the bus PT to synchronizer terminal 6.

4. Connect bus neutral to terminal 9.

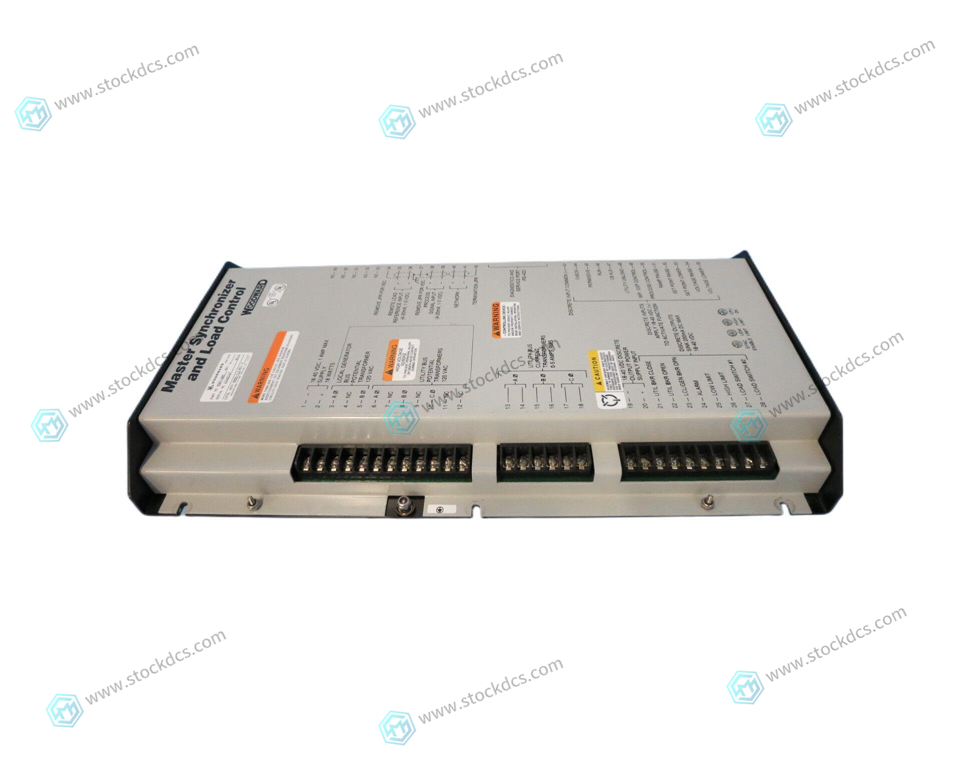

WOODWARD 9907-006.jpg
