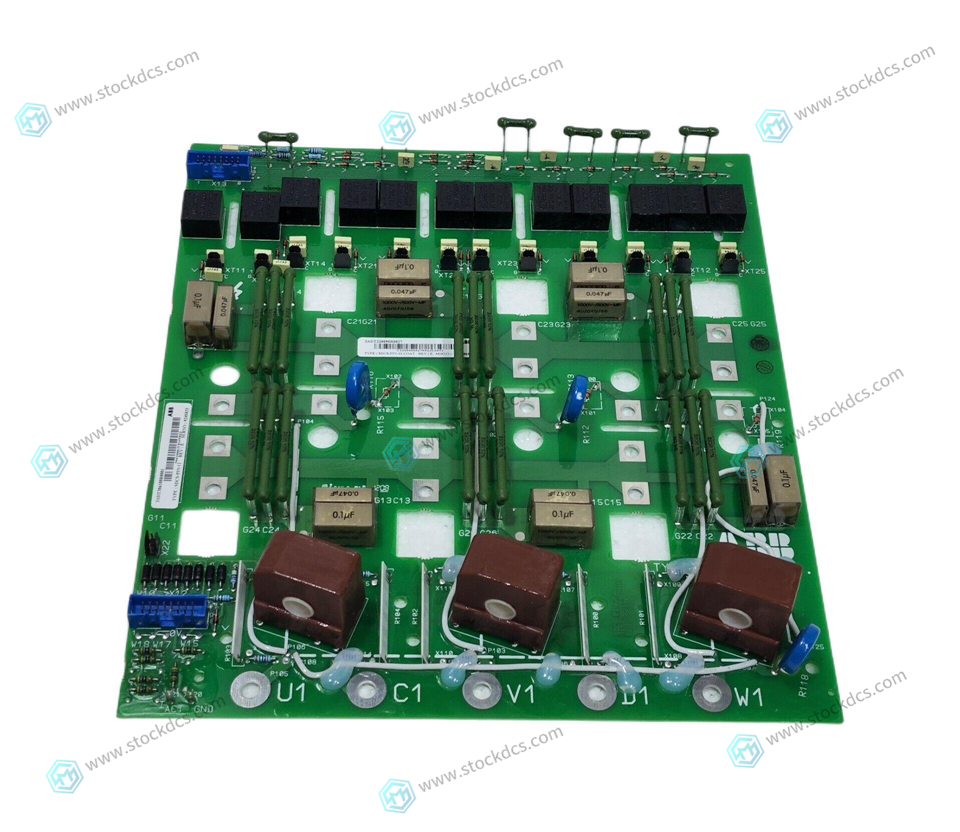

ABB SDCS-PIN-11-COAT 3ADT306100R0001 power interface module

ABB SDCS-PIN-11-COAT 3ADT306100R0001 power interface module

The ABB SDCS-PIN-11-COAT 3ADT306100R0001 is a power interface module that is used in ABB's DCS800 series of variable speed drives. This module is designed to interface between the power supply and the control system of the drive, and it provides various protections and control features.

The "COAT" in the product name refers to the conformal coating that is applied to the module's electronic components. This coating provides protection against moisture, dust, and other contaminants that could cause damage to the module.

The ABB SDCS-PIN-11-COAT 3ADT306100R0001 power interface module has several features that make it useful in industrial applications. These include:

Overcurrent protection: The module can detect overcurrent conditions and protect the drive from damage by shutting down the power supply.

Voltage monitoring: The module monitors the voltage of the power supply and provides feedback to the control system, which can use this information to adjust the drive's performance.

Communication interface: The module has a communication interface that allows it to communicate with other modules in the drive, as well as with external devices such as a PLC.

Built-in control logic: The module has built-in control logic that can be used to implement various control functions, such as starting and stopping the drive, changing the speed, and monitoring various parameters.
