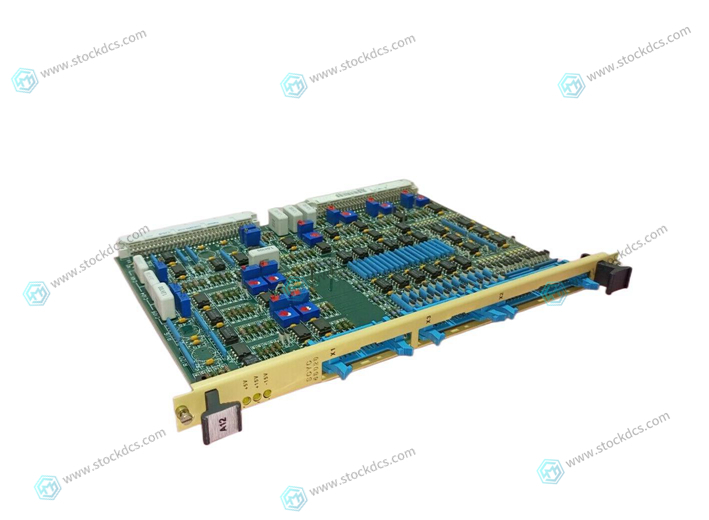

The ABB SCYC46020 is an analog control input board designed for use with ABB AC500 PLCs. It provides four analog inputs, which can be used to measure voltage or current signals. The board is designed to work with a variety of industrial control applications, including process control, motion control, and data acquisition.

Some of the key features of the ABB SCYC46020 analog control input board include:

Four analog input channels

Single-ended or differential input modes

Voltage or current input signal types

12-bit resolution

Configurable input ranges (e.g. +/- 10V, 0-20mA)

Built-in filtering and signal conditioning

LED status indicators

Hot-swappable design for easy replacement

To use the ABB SCYC46020 board, it must be installed in a compatible ABB AC500 PLC rack and connected to the appropriate input devices (e.g. sensors, transducers, etc.). The board can then be configured using the ABB Automation Builder software, which allows users to set the input ranges, scaling factors, filtering options, and other parameters. Once configured, the board can be used to monitor and control analog signals in real-time, providing critical data for industrial processes and applications.
