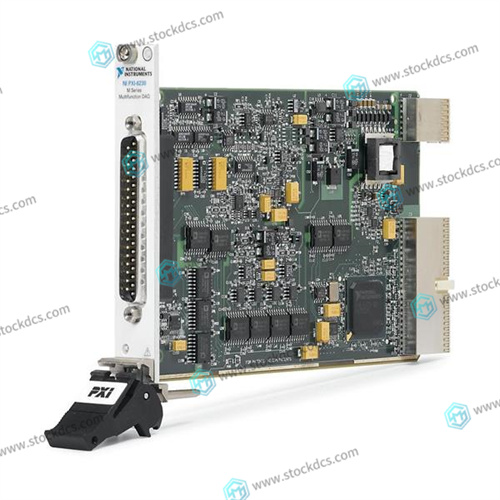

NI PXI-6230 is a high-performance multifunctional data acquisition card used on the PXI platform. The following are the detailed parameters and functions of the product:

Number of channels: 32 analog input channels with 16 bit resolution; 32 digital I/O channels.

Sampling rate: The maximum sampling rate is 400 kS/s (single channel) or 200 kS/s (full channel).

Input range: Programmable input range, including ± 10 V, ± 5 V, ± 2 V, and ± 1 V, etc.

Input type: Differential or single ended input, supporting programmable gain.

Output range: The digital output range is 0-5 V TTL/CMOS compatible.

High precision clock: An internal clock source with high stability and low jitter, which can be used for synchronous acquisition and triggering operations.

Trigger function: supports multiple trigger modes such as software trigger, digital trigger, and analog trigger.

Buffer: With a large capacity FIFO buffer, it can buffer data between collection and reading.

Digital I/O: 32 digital I/O channels can be used to control external devices and perform digital logic operations.

Software support: Equipped with NI-DAQmx driver and LabVIEW development environment, providing easy software development and integration.

NI PXI-6230 is widely used in various data acquisition and control applications, including automated testing, measurement, and monitoring systems. It provides high-speed and high-precision data acquisition and control capabilities, suitable for application scenarios that require processing large amounts of channel data and real-time operations.
