NI PXI-6284 is a multifunctional data acquisition and control module belonging to the PXI series of National Instruments (NI). The following are the detailed product parameters and functions of this module:

Product detailed parameters:

Sampling rate: up to 1.25 MS/s (single channel), 625 kS/s (dual channel)

Resolution: 16 bits

Number of channels: 8 analog input channels

Digital input/output: 32 digital I/O channels

Counter/Timer: 2 counter/timer channels

Bandwidth: Low pass filter bandwidth can be selected as 200 kHz or 5 MHz

Input range: Selectable input ranges are ± 10 V, ± 1 V, and ± 100 mV

Input withstand voltage: maximum withstand voltage is ± 42 V

Hardware calibration: supports hardware calibration to improve measurement accuracy

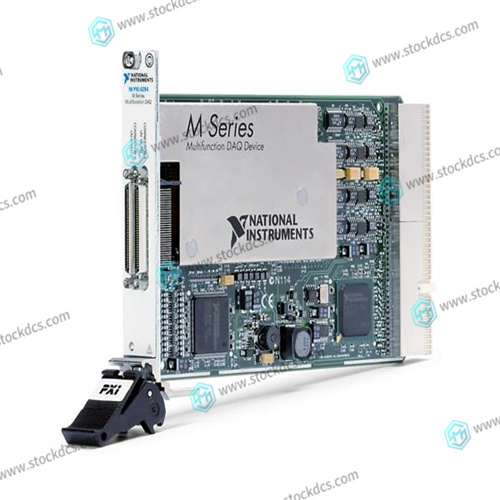

NI PXI-6284.jpg

Product features:

Data acquisition: Through analog input channels, high-speed and high-precision analog signal acquisition can be carried out for measuring data from various sensors and signal sources.

Data generation: Analog signals can be generated through analog output channels for controlling external devices or simulating experiments.

Digital input/output: With 32 digital I/O channels, it can be used for input and output of digital signals, such as triggering, status monitoring, and digital control.

Counter/Timer: Equipped with 2 counter/timer channels, it can be used for counting, measuring, and timing applications, such as frequency measurement and PWM generation.

High precision: 16 bit resolution and hardware calibration function, providing high-precision data measurement and generation capabilities.

Flexibility: With multiple input range options to adapt to different signal levels and application requirements.

PXI bus interface: Adopting PXI bus interface, it can quickly transmit data and synchronize with other PXI modules.

Driver Software Support: NI provides comprehensive driver software and development tools such as LabVIEW and NI-DAQmx for quick configuration and control of PXI-6284 modules.

Overall, NI PXI-6284 is a powerful, flexible and diverse data acquisition and control module suitable for various testing, measurement, and automation applications, especially in areas that require high-speed, high-precision data acquisition and real-time control.
