ABB BCU-02 3AUA0000110429 Module configuration method

ABB BCU-02 3AUA0000110429 Module configuration method

The BCU-02 module is a communication interface module for ABB drives. The module can be configured using the ABB DriveWindow software. Here are the steps to configure the BCU-02 module:

Install the DriveWindow software on your computer.

Connect the BCU-02 module to the ABB drive and to your computer using the appropriate cables.

Open the DriveWindow software and select the appropriate communication interface from the "Connect to" drop-down menu.

Once you are connected to the drive, select the "Configuration" tab in DriveWindow.

Select the "BCU-02" module from the list of available modules.

Configure the BCU-02 module settings as required. This may include setting the communication parameters, configuring the module for specific protocols, or configuring the module for specific functions.

Once you have configured the BCU-02 module, save the configuration to the module and disconnect from the drive.

Note that the exact configuration steps may vary depending on the specific application and the communication protocols used. Consult the BCU-02 user manual or contact ABB technical support for further assistance if needed.

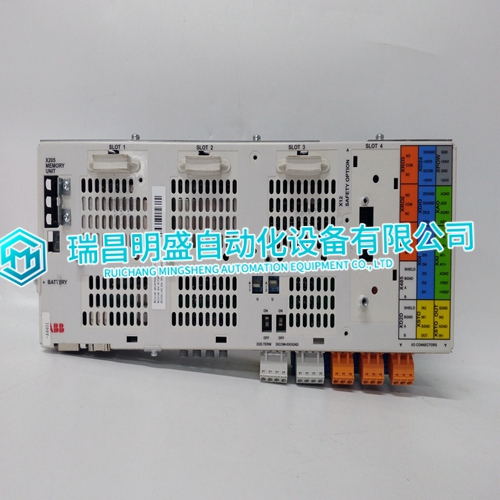

BCU-02 3AUA000010429 is a control unit for ABB industrial drives, used to control ABB's high-voltage frequency converters. This product has multiple input and output interfaces, including analog input, analog output, digital input, digital output, driver to driver link,+24V output of digital input, external power input, relay output, etc. The product also has an SDHC memory card slot that can store real-time data to assist in troubleshooting and analysis.
