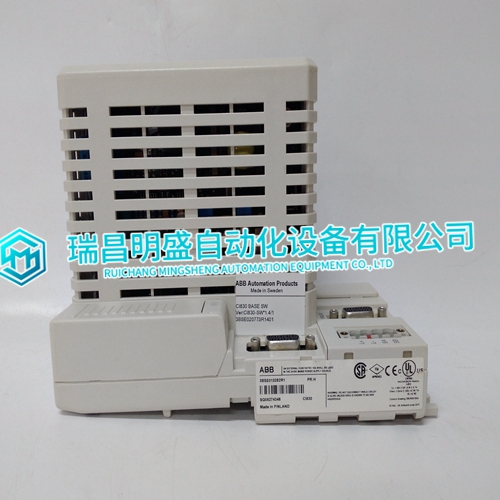

ABB CI830 3BSE013252R1 processor module appearance

ABB CI830 3BSE013252R1 processor module appearance

The ABB CI830 3BSE013252R1 is a communication interface module designed for use in the ABB S800 series of programmable logic controllers (PLCs).

This module provides communication between the PLC and other devices or systems using various communication protocols, including Modbus, Profibus, and Ethernet. It also provides diagnostic information to aid in troubleshooting and maintenance.

The CI830 module is a compact and versatile communication interface that supports a range of communication options, making it suitable for use in a variety of industrial applications. It is designed to be easy to install and configure, with a user-friendly interface that allows for quick and easy integration into existing systems.

S800 I/O is a digital I/O system produced by ABB, which is highly modular and flexible, making it suitable for many application scenarios. The S800 I/O consists of an I/O module and a fieldbus communication interface (FCI) to form an I/O station. S800 I/O can be used for both single and redundant applications.

The CI830 module has the following characteristics:

Equipped with two RS-485 interfaces for redundant configuration.

Supports the DP-V1 protocol and can read and write data.

Supports the Profisafe protocol and can achieve intrinsic safety.

It can be configured through a web server.
