Siemens 6ES7332-5HF00-0AB0 is an analog output module in the SIMATIC S7-300 series, belonging to the SM 332 module category, rather than a logic controller. This module is designed specifically for analog control in industrial automation systems, capable of converting digital signals in the controller into analog signals to control on-site execution equipment such as valves, regulators, etc.

Main features:

Output channels: Provides 8 analog output channels, suitable for controlling multiple devices simultaneously.

Output signal type:

Voltage: 0-10V, 1-5V

Current: 0-20mA, 4-20mA

High resolution: The module has a 16 bit resolution to ensure accurate analog signal output, suitable for applications with high precision requirements.

Electrical isolation: Each channel has electrical isolation between channels and between channels and the rest of the system, enhancing anti-interference capability.

Diagnostic function: The module has fault detection function, including short circuit, open circuit, etc., which can promptly notify users of system problems.

Load protection: Equipped with overload protection to prevent damage caused by overcurrent.

Technical parameters:

Product Code: 6ES7332-5HF00-0AB0

Number of output channels: 8 analog outputs

Output signal:

Voltage: 0-10V

Current: 0-20mA, 4-20mA

Resolution: 16 bits

Load impedance:

Voltage output: ≥ 1 k Ω

Current output: ≤ 500 Ω

Accuracy: ± 0.1% full scale, ensuring precise output

Isolation voltage: Channel and system are electrically isolated to prevent interference

Power supply voltage: 24V DC

Interface: 40 pin connector

Installation method: DIN rail installation, suitable for S7-300 system

Application scenarios:

Process control: used to adjust the opening or flow rate of valves, actuators, and other equipment.

Manufacturing: Control servo systems or other equipment that requires precise analog output.

Energy management: used as an output control unit in energy consumption monitoring and optimization.

Advantages:

Multi channel design: It can control multiple devices simultaneously, enhancing the flexibility of the system.

High precision output: 16 bit resolution ensures high-precision analog signal output.

Electrical isolation: enhances the anti-interference ability of the system in complex industrial environments.

Overload protection: improves the safety and reliability of the system.

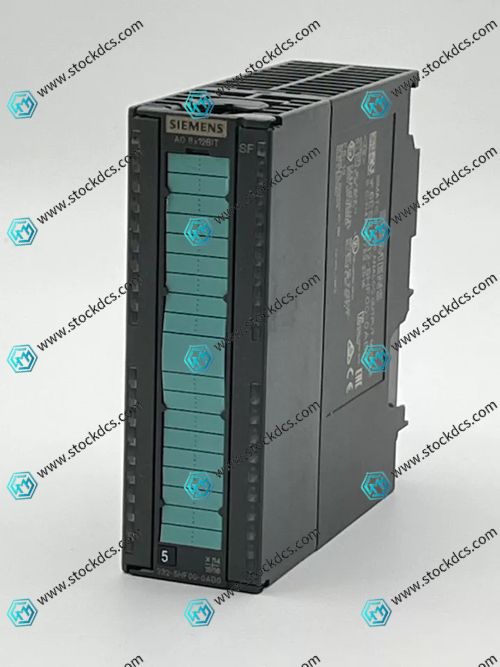

Product image
