Siemens A5E00754111 inverter power board

Siemens A5E00754111 inverter power board

Product Details Introduction

The Siemens A5E00754111 inverter power board is a power board produced by Siemens for its inverter system. This power board is used to provide necessary power for the frequency converter to control the speed and torque of the AC motor. The frequency converter power board is usually responsible for converting the input power into a DC power suitable for the frequency converter, and providing necessary protection, filtering, and power management functions.

Main functions and features:

Power management:

The A5E00754111 power board is mainly used to provide stable DC power for frequency converters. This process involves converting alternating current (AC) from the power grid into the required direct current (DC) for the frequency converter to control the speed and torque of the motor.

The power board integrates components such as rectifiers and filtering capacitors to ensure the stability of the output DC power and reduce the impact of power fluctuations on the performance of the frequency converter.

Inverter protection:

Power boards are usually equipped with various protection functions, such as overvoltage protection, overload protection, short circuit protection, and over temperature protection, to ensure that the frequency converter will not be damaged due to electrical problems during normal operation.

Protecting the circuit helps extend the service life of the frequency converter, reduce equipment downtime and maintenance costs.

Efficient Conversion:

The power board was designed with high-efficiency energy conversion in mind, maximizing energy loss and improving the overall efficiency of the inverter system.

When in use, the power board can maintain a low temperature to avoid overheating and affecting the normal operation of the frequency converter.

Supports multiple frequency converter applications:

Suitable for Siemens SINAMICS series or other Siemens inverter products, it can meet various application needs, including industrial automation, machine control, pumps, fans, etc.

Power boards usually have strong compatibility and can be used in conjunction with different types and power levels of frequency converters.

Industrial grade design:

Using high-quality materials to adapt to harsh conditions such as high temperature, humidity, and vibration in industrial environments, ensuring long-term stable operation in harsh environments.

It has high anti-interference ability and stable power output, which can effectively cope with external electrical interference.

Easy to install and maintain:

Power boards are typically designed to be modular and can be easily integrated with other frequency converter components.

Provide hot plug and unplug support for quick replacement when needed, reducing downtime.

Technical specifications (typical):

Power input: AC 380V to 480V (depending on the requirements of the inverter model)

Output voltage: DC direct current voltage, usually used to provide the voltage required for the control part of the frequency converter

Working temperature range: typically -10 ° C to+50 ° C, suitable for most industrial environments

Overload protection: with multiple protection mechanisms such as overload, overcurrent, and short circuit

Installation method: Modular design, usually DIN rail installation or direct installation inside the inverter housing

Size: The specific size may vary depending on the model and power of the frequency converter

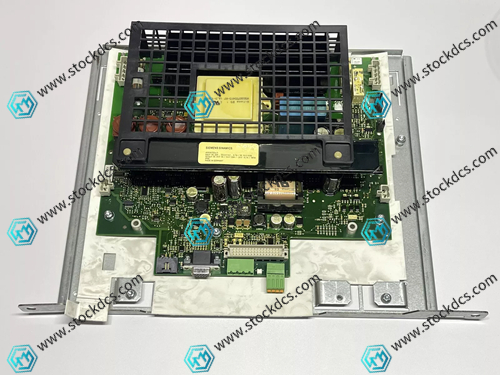

Product image
