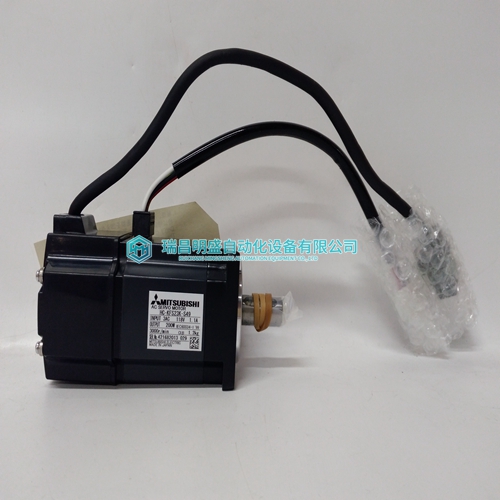

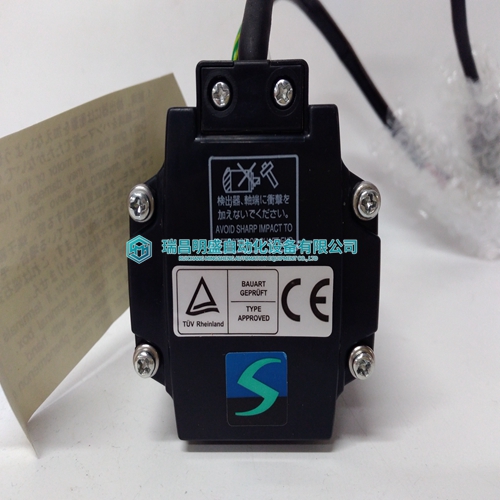

HC-KFS23K-S49 motor module

The modules of the SIMODRIVE 611 drive converter system can also be arranged in two tiers one above the other or next to each other. The distance between the rows of modules may not be less than 200 mm to ensure unrestricted cooling. In this case it must be ensured that the cooling air for the upper lineup does not exceed 40 C – or with derating does not reach 55 C. Otherwise, measures must be taken, for example an air baffle plate must be used or offset mounting, see Fig 9-8. As a result of the equipment bus cable, dependent on the design, the maximum clearance is specified When arranging the cable ducts that may be required for the wiring it must be ensured that the required minimum clearance to the SIMODRIVE 611 converter system is not fallen below. The modules with the higher power ratings – as well as the infeed module – must be located in the upper row of modules. The maximum expansion phase of a drive group is limited by the power rating of the infeed module. Only one equipment bus extension is permissible: Either to the left, e.g. for a second tier; or to the right, e.g. to bypass a cubicle panel.

Connecting cable

For the SIMODRIVE 611 drive converter system, for a two–tier equipment configuration, a connecting cable is required for the equipment and drive bus. In the two–tier equipment configuration, the DC link is connected using parallel cables (max. length, 5 m; in conjunction with SIMODRIVE POSMO SI/CD/CA, the guidelines correspond to the User Manual SIMODRIVE POSMO SI/CD/CA). The required cable cross-section of the connecting cable for the downstream modules can be obtained from the dimension drawing in Fig. 12-60. The three cables should be tied together. These cables are not included with the equipment. The dimensions, specified in the diagram 9-7 apply for the DC link connection of components that are separately located next to each other, e.g. extending over several electrical cabinets.

Adapter terminals are available to connect the DC link

The DC link voltage can be connected further using these adapter terminals, e.g. to connect the DC link for two–tier configurations. The following adapter terminals are available (refer to Fig. 9-7): Package with two double terminals 50 mm2 for a module width 50...200 mm (to 100 A also for a module width of 300 mm) (Order No.: 6SN1161–1AA01–0BA0) Package with two double terminals 95 mm2 for a module width of 300 mm (Order No.: 6SN1161–1AA01–0AA0)

1. The continuous equipment bus cable of a drive group at one input module or monitoring module may be a maximum of 2.1 m long (from the supply point). For a two–tier configuration, two equipment bus branches, each with max. 2.1 m length from the branching point (supply point) can be used at the infeed. 2. 1500 mm equipment bus extension for a two–tier configuration with a branch at the supply/infeed point (Order No.: 6SN1161–1AA00–0AA1). 3. The drive bus length may not exceed 11 m. For more than six modules, control units, round cables must be used instead of ribbon cables.
