AMAT 0100-02420 Optoelectronic Isolation Board Module

Product Details Introduction

Some common functions of general photoelectric isolation board modules:

Photoelectric isolation: Photoelectric isolation board module is usually used to realize Galvanic isolation between input and output to prevent interference, current return or voltage fluctuation from affecting the circuit or system. They use optocoupler devices to isolate the input signal and output signal, protecting the stability and reliability of the circuit.

Signal isolation: The photoelectric isolation board module can achieve signal isolation transmission, transmitting input signals from the input end to the output end, while ensuring that interference or noise from the input signal does not propagate to the output end. This helps to improve the signal quality and anti-interference ability of the system.

High speed transmission: Some optoelectronic isolation board modules have high-speed transmission capabilities, suitable for applications that require fast signal transmission and processing. They can maintain fast response and high-frequency transmission of signals.

Galvanic isolation: the photoelectric isolation board module provides Galvanic isolation, which can disconnect the electrical connection between the input end and the output end to prevent the direct transmission of current or voltage. This helps to prevent interference and mutual influence between circuits, improve system stability and safety.

Safety protection: The photoelectric isolation board module usually has a safety protection function to prevent damage to the system due to abnormal conditions such as overcurrent and overvoltage. They may include functions such as overcurrent protection, overvoltage protection, and short-circuit protection.

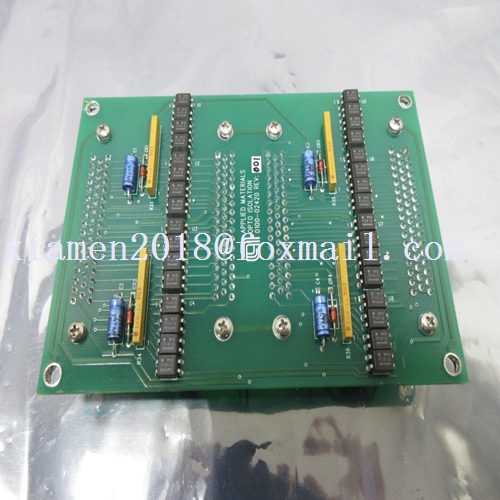

Product image
