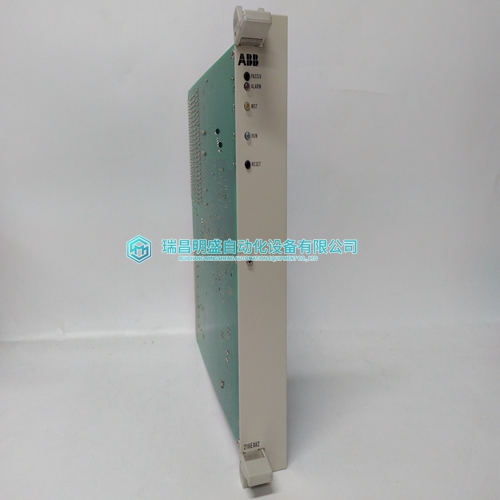

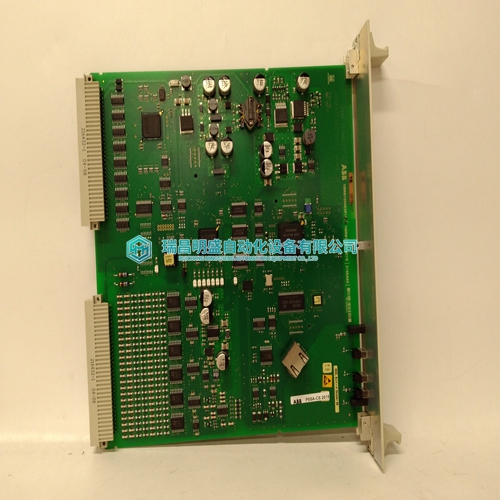

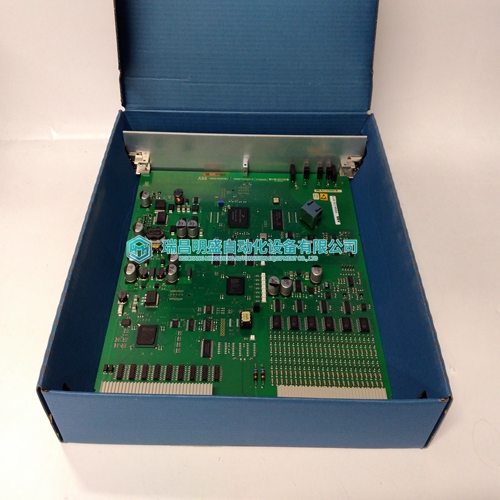

1MRB150083R1E 1MRB300162R0008 Control card

DCS/DCF 500B parameters consist of two types (parameters and inputs) and divided to several different parameter groups. Parameters / inputs of a certain group belong to the same functional part of the control program. Maximum number in one group is 99. (within this manual the word parameter will be used for both types, parameter and input)is given in the same format as it is seen on the panel. Para mentiones the name of the function block using this parameter; at the end of this line the page of the software diagrams available at the end of the System Description is given; at some parameters the software version is named this parameter is available for the first time Expl description in verbal form Index of a parameter contains a group number and an element number. Last two digits are the element number and other numbers before them form the group number

Signals of DCS 500

 DCS/DCF500B signals are divided to several different signal groups. Signals of a certain group belong to the same functional part of the control program. Maximum number of signals in one group is 99 is given in the same format as it is seen on the panel. Sig mentiones the name of the function block using this signal; at the end of this line the page of the software diagrams available at the end of the System Description is given; at some signals the software version is named this signal is available for the first time Expl description in verbal form Index of a signal contains a group number and an element number.values are given as internal values for those signals which can be modified by user. Minimum values are given as internal values for those signals which can be modified by user. Default not used for signals Unit is given for signals which have an unit.will be found at the SETTINGS function block, which is shown on the software diagrams on page 2 out of 16

Input of SOFT_POT-function block.

(S4/16 | S21.233) In default condition the output of the SOFT_POT function block is reset to zero, if the drive is stopped by removing the RUN command from the binary input. In case this behaviour is not useful change the interconnection to a different signal. Definition of this input: The output SOFT_POT:OUT (11904) is kept to logic level = 0 as long as this input is not connected or the connected signal (default: RUNNING (10903)) has logic level = 0. If the connected signal is set to logic level = -1 the function is enabled.Parameter of 12-PULSE LOGIC-function block (S13/16 ). A bridge reversal takes place in several steps. When the current has reached very low values this delay time is started to make sure, the current will become zero and then the bridges will be swapped and the current controller will be released. The delay time is defined in multiples of cycles (cycle = 3.3 ms at 50 Hz / 2.78ms at 60 Hz). The function is independent of the control mode (6- or 12-pulse or DCF mode). If used in 12 pulse mode Master and Follower drive must have the same setting! (higher HL in S21.232)
