The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

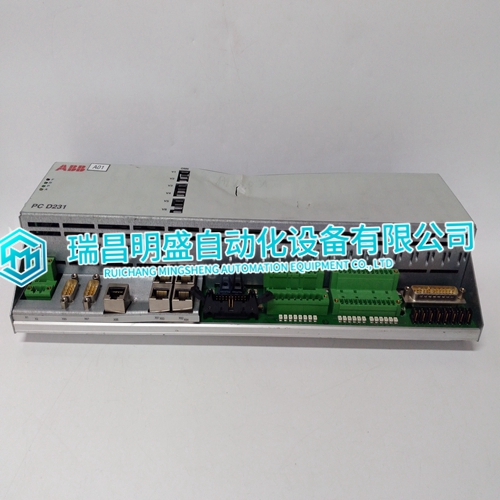

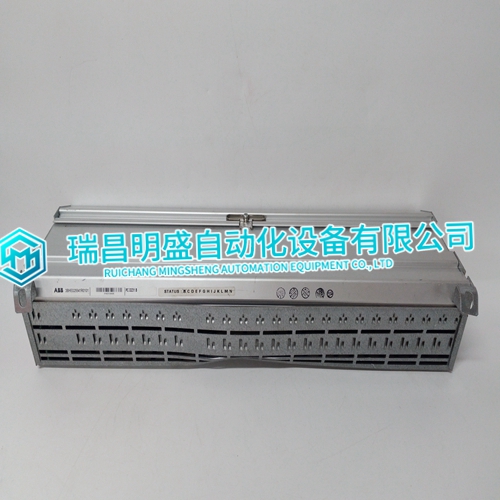

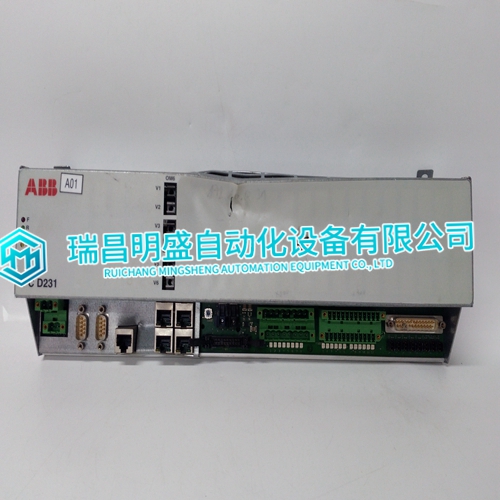

PCD231B 3HHE025541R0101 Control module

Tightening reliability, safety, total cost of ownership, and plant-wide communications requirements are changing the face of the steam turbine controls industry. To meet these demands, Woodward offers comprehensive energy control system solutions for every size, type, and application of steam turbine made. From the smallest turbine to the largest, Woodward offers a tightly integrated control system solution that perfectly matches the requirements.The ProTech 203 Overspeed Protection System monitors three individual magnetic pickups (MPUs) to provide overspeed protection for steam and gas turbines and other prime movers. The system replaces mechanical overspeed devices, especially in high-speed applications (above 10,000 rpm) when a mechanical overspeed device becomes unreliable.The 5009 control is designed to provide highly reliable control on critical steam turbine applications. It can be configured to control condensing, backpressure, and single automatic extraction/admission turbines. The 5009 is field programmable and uses Windows™ menu-driven software to guide site engineers on configuring the control to a specific generator or mechanical drive application. The 5009 can be configured to operate as a stand-alone unit or in conjunction with a plant's Distributed Control System.

Standard Digital Controls

The 505 and 505E are microprocessor-based controls designed to operate steam turbines of all sizes. The 505 is designed to operate steam turbines using one or two (split-stage) actuators to drive inlet steam valves. The 505E is designed to operate single extraction and/or admission steam turbines. These digital controls are field programmable. They use menu-driven software to instruct site engineers on programming the control to a specific generator or mechanical drive application. The 505 or 505E can be configured to operate as a stand-alone unit or in conjunction with a plant's Distributed Control System. (product spec 85005) The Peak 150 digital control is designed to control a steam turbine driving a mechanical load. It provides tight control of speed (NEMA D) and includes an input for a 4–20 mA remote speed control signal, which can be used for a processgenerated input to control the speed setting. Other features include dual speed control dynamics and overspeed trip test capabilities.

The 505DE is a microprocessor-based control

 with integral application software that is designed to control double automatic extraction/admission steam turbines. The turbine control architecture is patterned after the popular 505E Single Extraction/Admission Steam Turbine Control. Like the 505E, the 505DE uses configurable software for maximum field flexibility. The control hardware consists of four plug-together modules housed in a rugged metal chassis. The SmartCore module and the Analog I/O module contain the I/O required for double extraction turbine control. The main processor and the Ethernet port are located on the Pentium CPU module. The Power Supply module (24 Vdc) is provided to power the entire control assembly. The control also contains 12 relay drivers for external use.

The Servo Position Controller (SPC) is a servo-valve driver that accepts a DeviceNet or 4–20 mA based position demand signal from a system controller, and accurately positions proportional or integrating servo-valves. The SPC has the required accuracy, responsiveness, and redundancy required for steam or gas turbine fuel valve control. For valve position sensing, the SPC accepts feedback signals from one or two (redundant) ac devices or one dc device. A Windows based software program is used to configure the SPC, adjust tunables, and monitor parameters via a personal computer. For ease of service, SPC configurations can be done while connected or disconnected to the unit. Once a configuration has been created, this program allows configurations to be uploaded and downloaded to other SPCs as desired.
