Nikon 14066C Analog Input Electronic Module

Nikon 14066C Analog Input Electronic Module

Product Details Introduction

Analog input electronic module is an electronic device used to collect and process analog signals, typically used to monitor and control various physical quantities such as temperature, pressure, voltage, current, humidity, etc. These modules convert analog signals into digital signals so that computers or control systems can process, analyze, and record these data. Here are some basic information about analog input electronic modules:

Functions and features:

Analog signal acquisition: The analog input electronic module is used to collect analog signals, usually measuring physical quantities through sensors or sensors.

Signal conversion: The analog input module converts the collected analog signals into digital form, so that the computer or control system can process and analyze them.

Resolution: Resolution refers to the minimum signal variation that the analog input module can recognize and quantify. High resolution modules can capture finer signal changes.

Sampling rate: The sampling rate represents how many times the module samples the analog signal within one second. High sampling rates can capture changes in high-frequency signals.

Number of input channels: Analog input modules typically have multiple input channels, allowing for simultaneous monitoring of multiple sensors or signal sources.

Electrical isolation: In order to improve circuit safety, some modules provide electrical isolation to isolate input signals and control circuits.

Programming and configuration: Users can define the functions and behaviors of analog input modules through programming or configuration, including calibration, filtering, sampling speed, and data transmission options.

Application field:

Industrial automation: Analog input modules are widely used to monitor and control parameters such as temperature, pressure, liquid level, and flow in industrial processes.

Environmental monitoring: In meteorological stations, water quality monitoring stations, and pollution control systems, analog input modules are used to monitor environmental parameters such as temperature, humidity, and gas concentration.

Power system: used to monitor power equipment, current, voltage, and power factor to ensure the stability and quality of power distribution.

Medical devices: Analog input modules are used to monitor physiological parameters, sensor readings, and medical imaging devices in medical devices.

Laboratory measurement: used for scientific research and laboratory measurements to monitor the status of experimental equipment, sensor readings, and experimental data.

Communication devices: They can be used to monitor communication devices, signal quality, and network parameters to support communication and network operations.

Building automation: In building management systems, analog input modules are used to monitor lighting, heating, ventilation, air conditioning, and safety systems.

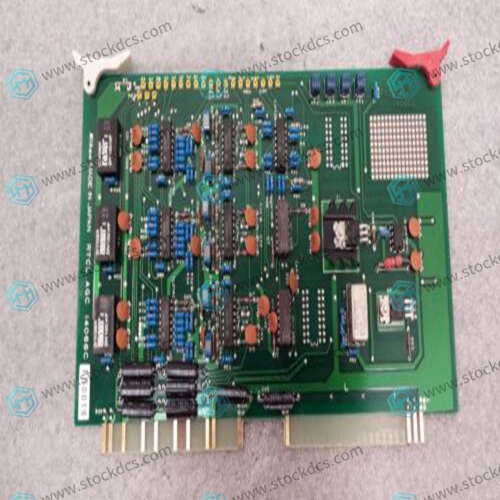

Product image
