Nikon 23048-3 Digital Quantity Control Board

Nikon 23048-3 Digital Quantity Control Board

Product Details Introduction

A digital control board is a hardware component used to perform input and output control tasks for digital signals. These boards are usually connected to computers or embedded systems, allowing users to collect digital input signals, control digital output signals, and perform digital signal processing and analysis. The following is the basic information about the digital quantity control board card:

Features and functions:

Digital input channels: These boards often have multiple digital input channels for connecting digital sensors, switches, buttons, etc. to collect discrete or binary signals (such as switch status).

Digital output channels: They can also include digital output channels for controlling external devices such as relays, motors, lights, etc.

High speed sampling rate: Some digital control boards have a high sampling rate, which can monitor and respond to changes in digital input signals in real time.

Electrical isolation: To improve circuit safety, some boards provide electrical isolation to isolate the electrical connections between input and output signals.

Programming and configuration: Users can define the functions, triggering conditions, and logic of digital input and output channels through programming or configuration.

Communication interface: These boards are usually connected to the computer system through interfaces such as PCI, PCIe, USB, Ethernet, etc.

Application field:

Industrial automation: Digital control boards are widely used in automated production lines, industrial machines, PLC systems, and industrial control applications, for monitoring and controlling the status of switches and actuators.

Building automation: In commercial and residential buildings, these boards are used to control lighting, heating, ventilation, air conditioning, safety systems, and building management systems.

Environmental monitoring: used to monitor environmental parameters such as door and window status, gas concentration, liquid level, and flow rate to support safety, energy management, and environmental protection applications.

Power system: They are used to monitor the status of power equipment, power distribution, and grid parameters to ensure the stability and reliability of power supply.

Traffic Signal System: In traffic management, digital quantity control boards are used to monitor the status of traffic lights, railway signal systems, and traffic management centers.

Medical equipment: used to monitor the status of medical equipment, monitor patients, and control medical instruments to ensure the safety and accuracy of the medical process.

Communication devices: These boards can be used to control communication devices, routers, switches, and data center devices to support communication and network operations.

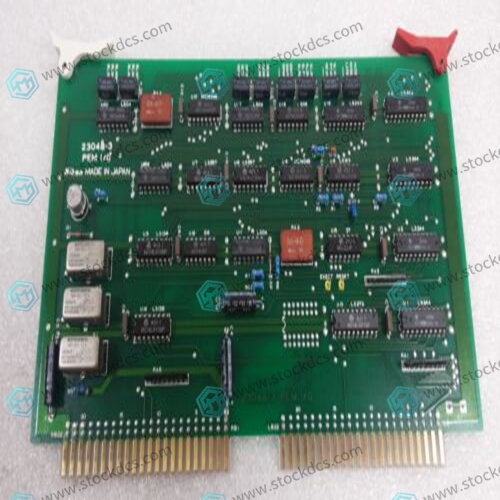

Product image
