Nikon 4S019-289 Printed Circuit Board

Nikon 4S019-289 Printed Circuit Board

Product Details Introduction

Printed Circuit Board (PCB) is a basic hardware used to support and connect electronic components. It is usually made of insulating material with conductive pathways for transmitting current, signals, and data in electronic devices. The following are the main features and functions of printed circuit boards:

Main features:

Circuit connection: PCB provides circuit connections between electronic components, allowing them to communicate with each other and work together.

Conductive layer: PCB usually has one or more conductive layers for transmitting current and signals. These conductive layers are usually made of copper or other conductive materials.

Insulation layer: The conductive layers in a PCB are separated by insulation layers to prevent short circuits between circuits.

Printing technology: PCB is usually manufactured through printing technology, including chemical etching, etching, and screen printing.

Component support: The component support area on a PCB, such as solder pads and holes, used for installing and connecting electronic components such as resistors, capacitors, integrated circuits, etc.

Multilayer structure: Complex electronic devices typically use multi-layer PCBs, which have multiple conductive and insulating layers to provide more circuit and connection options.

Design Freedom: PCB can be customized according to specific application requirements, including shape, size, wire layout, hole position, etc.

Surface Mount Technology: PCB can use Surface Mount Technology (SMT) or Insert Mount Technology (TH) to install electronic components, depending on the application requirements.

Thermal management: For high-power electronic devices, some PCBs also include heat sinks or cooling channels for heat dissipation.

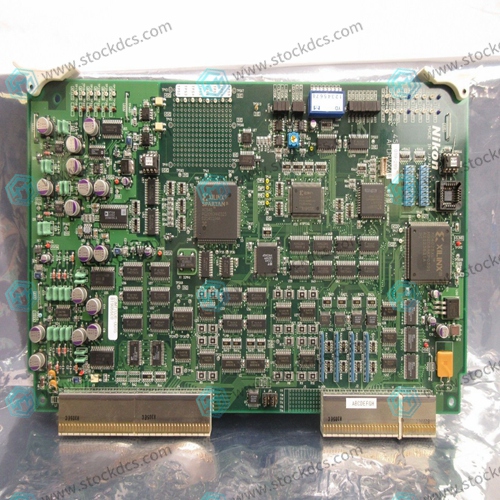

Product image
