Nikon 2S700-075-4 PCB Assembly

Nikon 2S700-075-4 PCB Assembly

Product Details Introduction

PCB components refer to electronic components on a printed circuit board (PCB) that are used to connect, support, and control the functions of the circuit. PCB components can be divided into two categories: electronic components fixed and soldered onto the PCB, and components connected to the PCB through sockets or connectors. The following are common types of PCB components:

Electronic components that are fixed and soldered:

Resistor: Used to limit current, divide voltage, and adjust circuits.

Capacitor: used for storing charges, filtering, and stabilizing voltage.

Inductor: used for storing energy, suppressing high-frequency noise, and filtering.

Diode: used for rectification, switching, and protection circuits.

Triode/transistor: used for amplifying, switching, and controlling current.

Relay: Used for switching, controlling, and isolating circuits.

Integrated Circuit (IC): includes analog and digital ICs, used to perform various functions such as microprocessors, amplifiers, counters, etc.

Components connected through sockets or connectors:

Socket: Used to insert and remove specific types of electronic components, such as integrated circuit sockets.

Connector: Used to connect other electronic devices, modules, or cables.

Terminal block: used to connect wires to a PCB, typically used for power distribution.

Switch: Used to control the switch operation of a circuit.

Indicator light: used to indicate circuit status, such as power, fault, or active status.

Sensor: used to measure environmental variables, location, temperature, humidity, etc.

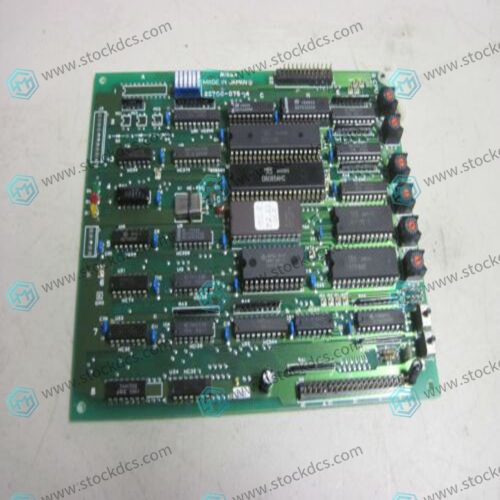

Product image
