Nikon 4S015-096 Process Board

Nikon 4S015-096 Process Board

Product Details Introduction

Printed Circuit Board (PCB) is a fundamental component used to connect and support electronic components. It provides a mechanical support structure and enables connections and electrical signal transmission between electronic components through wires, pads, and circuit paths on its surface. PCB is a key component of almost all modern electronic devices, including computers, mobile phones, televisions, household appliances, automotive electronics, and more. The following is the main information about printed circuit boards:

The main components of a PCB are:

Substrate: The main part of a PCB, usually made of insulating materials such as fiberglass reinforced epoxy resin (FR-4). The substrate provides mechanical support and is used for installing electronic components.

Traces: A thin conductive layer or track, usually copper, covering the surface of a substrate. Wires are used to transfer current from one electronic component to another and form a circuit path.

Pads: Pads are welding points that connect electronic components, usually located at the end of a wire. The solder pad is used to connect component pins and install the components on the PCB with solder.

Traces/Routes: The arrangement of wires and connection points forms a circuit path through which current can flow, thereby achieving the functionality of the circuit.

Type of PCB:

Single sided PCB: Only one layer of wires and component mounting surface. Usually used for simple circuits.

Double Sided PCB: Two layers of wires, one at the top and one at the bottom, connected through through holes. Suitable for circuits with moderate complexity.

Multilayer PCB: There are three or more wire layers, with the middle layer separated by an insulation layer. Multilayer PCBs are typically used for highly complex electronic devices, such as computer motherboards and communication devices.

Application field:

PCB is widely used in various fields, including but not limited to:

Manufacturing of electronic devices, such as computers, mobile phones, tablets, etc.

The automotive industry, including in car entertainment systems and engine control systems.

Industrial control and automation, used for monitoring and controlling industrial processes.

Medical equipment, such as medical monitoring equipment and image diagnostic instruments.

Communication equipment, including base station equipment and network routers.

Military and national defense applications, such as radar systems and military communication equipment.

Consumer electronics products such as televisions, sound systems, and home appliances.

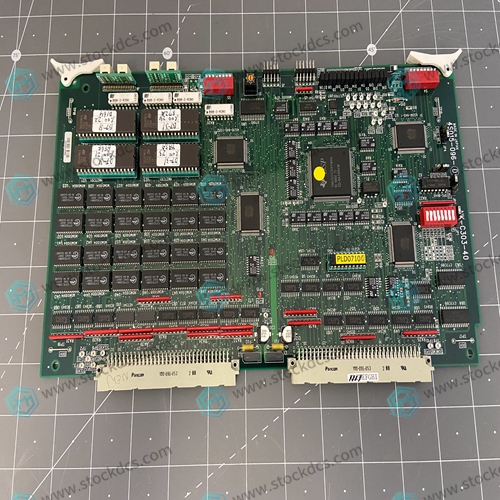

Product image
