ASML 4022-451-04002 Fixture Assembly

ASML 4022-451-04002 Fixture Assembly

Product Details Introduction

ASML 4022-451-04002 fixture components are equipment or tools used to fix and maintain workpieces during processing or assembly. Fixtures are usually used to provide stable workpiece positioning, clamping, and support to ensure machining accuracy and consistency. The following are some common fixture components:

Fixture Base: This is the main support structure for ASML 4022-451-04002 fixtures, usually made of sturdy materials, used to secure other fixture components. There are usually holes, slots, and fixing devices on the bed for installing fixture components and workpieces.

Clamping Elements: These elements are used to grip the workpiece to ensure that it does not move or rotate during the machining process. The clamping components can include clamping jaws, fixture bases, fixture blocks, bolts, and handles.

Positioning Elements: Positioning elements are used to ensure that the workpiece is in the correct position. These components can include positioning pins, positioning blocks, positioning holes, and positioning pin seats.

Support Elements: Support elements are used to support the bottom of the workpiece or other areas that require additional support to prevent deformation or bending of the workpiece. These components can include support blocks, support columns, and support seats.

Adjusting Elements: Adjusting elements are used to fine-tune the position or angle of the fixture to meet specific machining needs. These components can include screws, adjustment seats, adjustment washers, and adjustment screws.

Fasting Elements: Fixed elements are used to fix fixtures on workbenches, machine tools, or other supporting structures. These components can include bolts, nuts, bolt holes, and clamp bolts.

Lubrication and cooling system: Some fixtures may include lubrication and cooling systems to ensure that tools and workpieces are maintained at appropriate temperatures and lubrication conditions during the machining process.

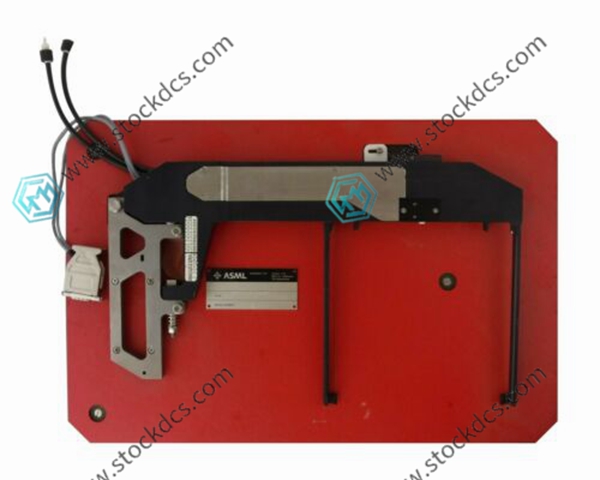

Product image

Related products:

ASML 4022.471.88171 Power PCB

ASML 4022.634.20691 Fiber Opti

ASML 4022-639-92101 Laser Lamp
