ASML 4022.471.6707 Printed Circuit Board

ASML 4022.471.6707 Printed Circuit Board

Product Details Introduction

Printed Circuit Board (PCB) is a substrate used to support and connect electronic components, playing a key role in electronic equipment and circuits. PCBs are usually made of thin and sturdy boards, such as epoxy resin reinforced with glass fibers, with conductive doors printed on their surface to connect different components and transmit electrical signals.

Here are some key information about unrelated printed circuit boards:

Conductive circuit: PCB is printed with conductive circuit, usually made of copper foil or other conductive materials. These gateways connect various electronic components, such as resistors, capacitors, integrated circuits, diodes, etc., so that current and signals can be fixed in the circuit.

Structured structure: PCB usually has a multi-layer structure, where different layers are added together to accommodate more wires and components. Multilayer PCBs can provide more connectivity in limited space.

Printing and chemical addition: PCB is usually produced through printing and chemical addition processes. The printing process is used to print circuit patterns on a board, and then remove unnecessary information through chemical methods to retain conductive pathways.

Component support: The PCB provides machine support to support electronic components and ensure their correct position within the equipment.

Electronic component assembly and disassembly: Electronic components are usually assembled and disassembled onto a PCB through appearance assembly and disassembly techniques (SMT) or plug-in assembly. SMT is a technique of soldering surface mounted components (SMD) onto the surface of a PCB to reduce the size of the components.

Connectors and interfaces: PCBs are usually equipped with connectors and interfaces for connection with other circuit boards, external equipment, and power supplies.

Customization plan: PCB plans can be customized according to specific application needs. Planners can create PCBs that are suitable for specific circuit structures and connections.

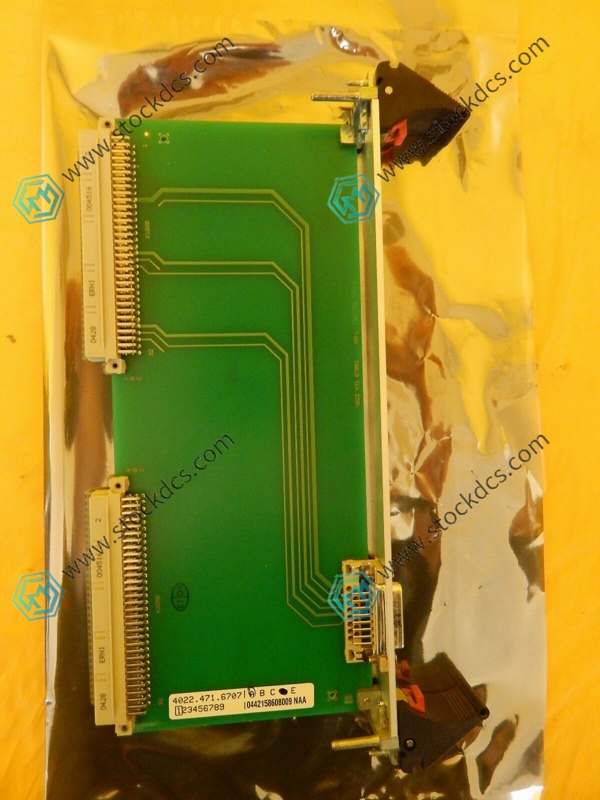

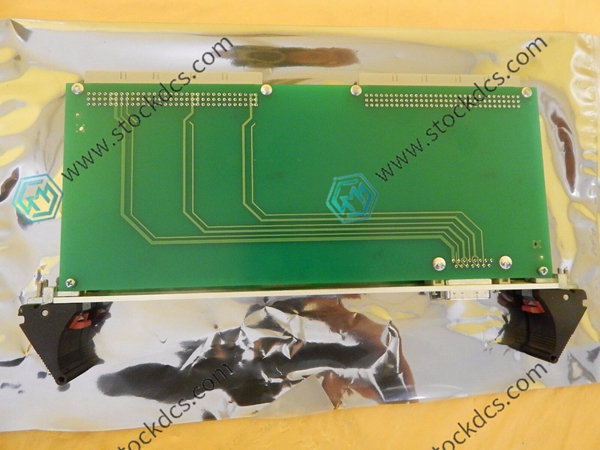

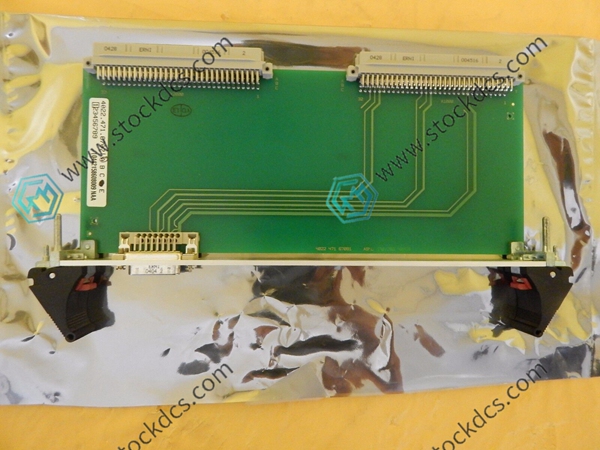

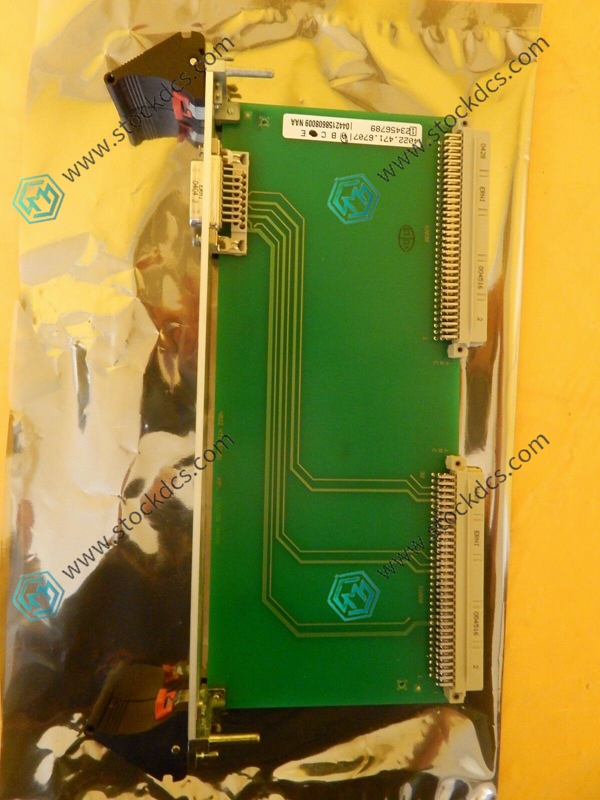

Product image
