ASML 854-8301-006A Stepping Module Board

ASML 854-8301-006A Stepping Module Board

Product Details Introduction

The term 'stepper module board' may refer to an electronic module or printed circuit board (PCB) used to control stepper motors. Stepper motor is a type of motor commonly used for precise position control, commonly used in various applications, including robots, automation systems, 3D printers, CNC machine tools, and other devices that require precise motion control.

The stepper module board typically includes the following functions and features:

Stepper motor drive: The stepper module board usually has a stepper motor drive circuit that can be used to control the movement of the stepper motor. They can generate appropriate current and pulse sequences to control the rotation of stepper motors.

Microstep control: Some stepper module boards support microstep control, allowing for finer stepper motor control and smoother motion.

Direction control: These modules typically allow the user to control the direction of the stepper motor to achieve forward and reverse movement.

Speed control: The stepper module board usually allows users to control the speed of the stepper motor to meet the speed requirements of different applications.

Position control: They usually support precise position control to ensure that the stepper motor can stop at a specific position.

Limit switch and sensor interface: Some stepper module boards include interfaces for connecting limit switches, encoders, or other sensors for more advanced control and position feedback.

Communication interface: Some module boards may have communication interfaces, such as RS-232, RS-485, CAN bus, etc., for communication and control with computers or other devices.

Protection function: Some stepper module boards include motor protection functions, such as overheat protection, overcurrent protection, etc., to ensure the safety of stepper motors and circuits.

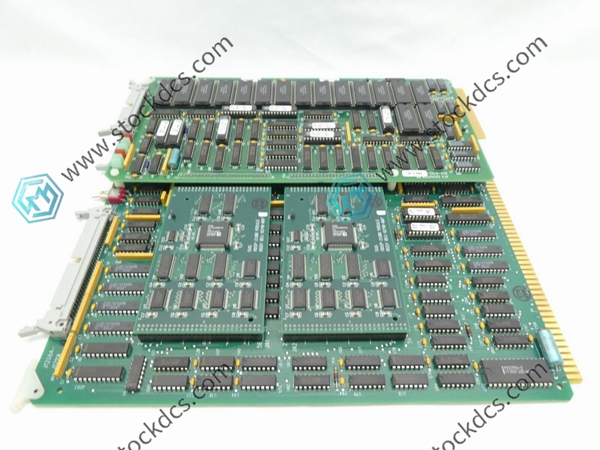

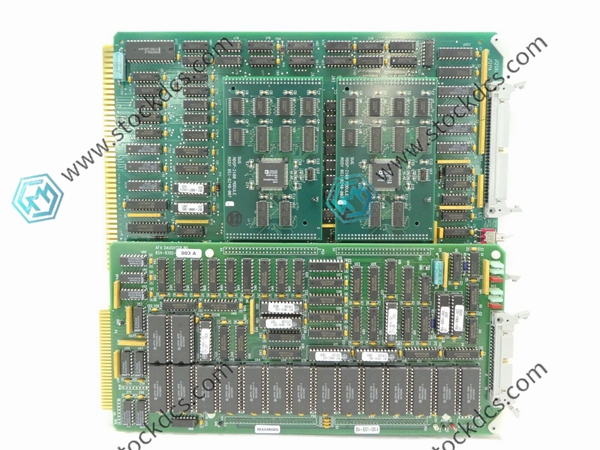

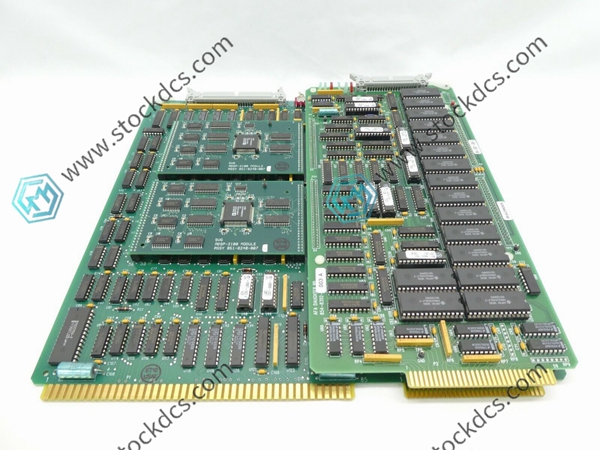

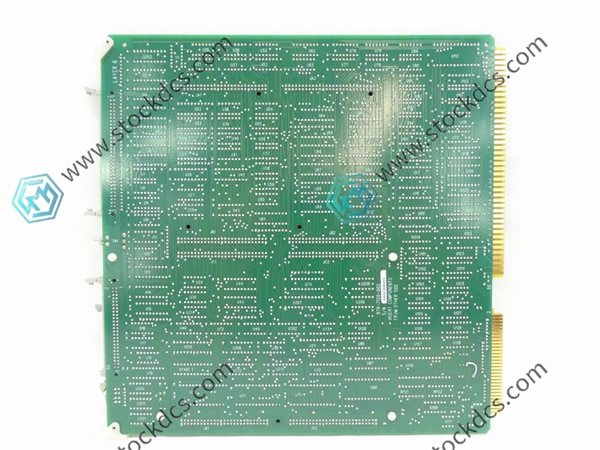

Product image
