UCD224A102 servo axis control module

UCD224A102 servo axis control module

Product Details Introduction

The UCD224A102 servo axis control module is a high-performance module used to control servo motors. It integrates control circuits and drive circuits, capable of receiving instructions from the control system and converting these instructions into precise motion of servo motors. This module has the advantages of high precision, high response speed, and low vibration noise, and is suitable for various situations that require high-precision motion control, such as CNC machine tools, packaging machinery, printing machinery, etc.

The characteristics of the UCD224A102 servo axis control module include:

High performance: Adopting advanced digital signal processors (DSP) and high-speed optoelectronic encoder technology, achieving high-precision, high response speed, and low vibration noise control performance.

Multiple control modes: Supports various modes such as position control, speed control, and current control, and can be selected and switched according to actual needs.

High speed communication interface: Supports high-speed communication interfaces such as CAN bus, Profibus, etc., facilitating data exchange and integration with other devices.

Accurate positioning accuracy: Using a high-resolution photoelectric encoder to achieve precise position detection and closed-loop control, improving positioning accuracy and motion stability.

Powerful protection function: equipped with overcurrent, overvoltage, undervoltage and other protection functions, ensuring equipment and personal safety.

Easy to program and configure: Supports multiple programming languages and development environments, making it convenient for users to program software and configure hardware. Simultaneously providing easy-to-use configuration software and interfaces to reduce the difficulty of use.

Scalability: This module has multiple expansion slots and can support multiple expansion modules, making it convenient for users to customize and expand according to their actual needs.

In summary, the UCD224A102 servo axis control module is a high-performance, stable, reliable, easy to use and install servo controller, suitable for various situations that require high-precision motion control.

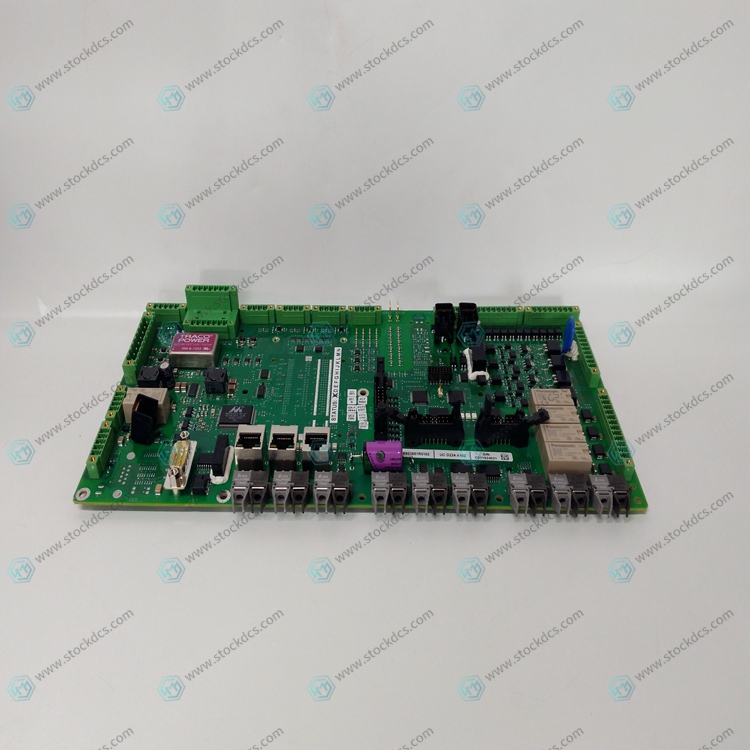

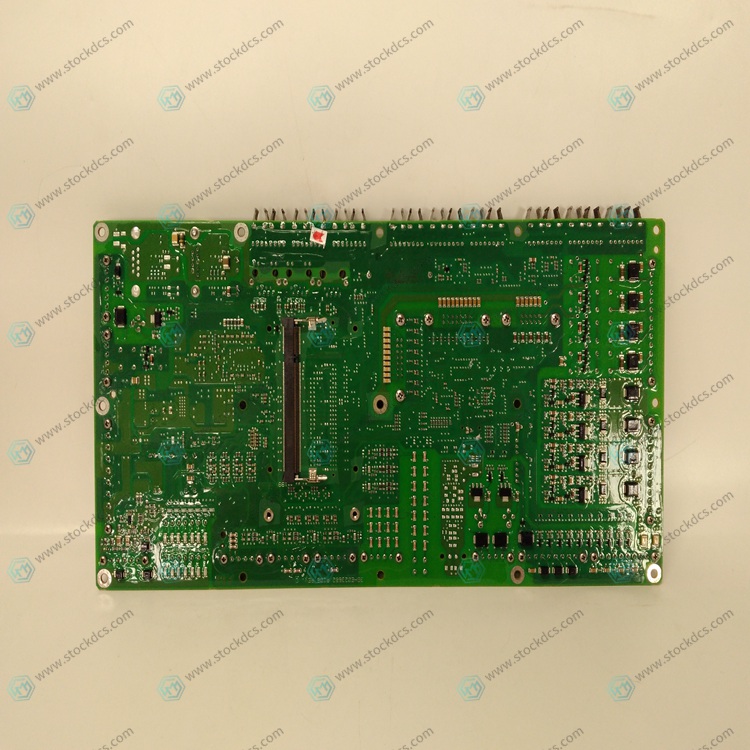

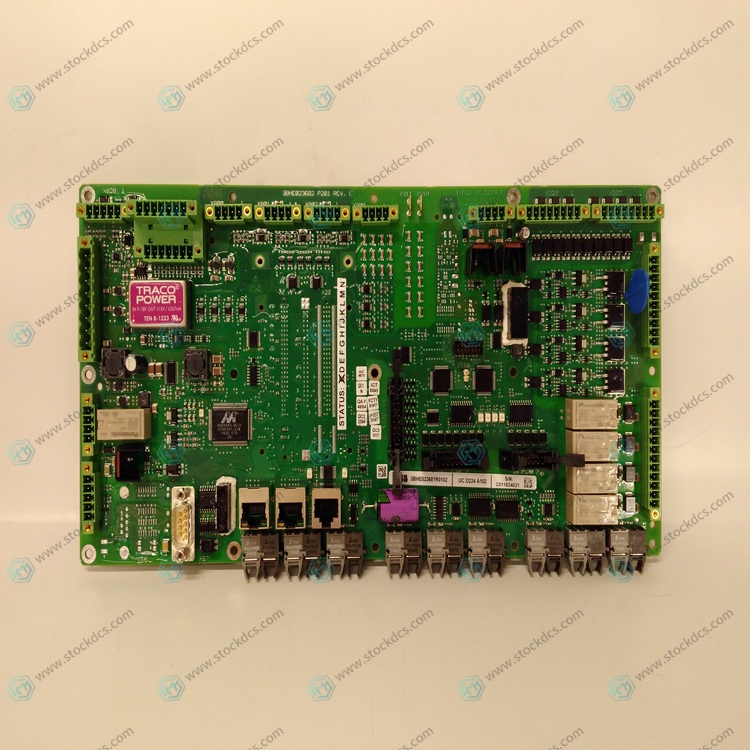

Product image
