Product Details Introduction

The AB 1797-IRT8 thermocouple input module is a Flex Ex thermocouple I/O module manufactured by Allen Bradley, a brand under Rockwell Automation. Here are some of the main features and functions of this module:

Function: This module is used to receive input signals from thermocouple sensors and convert them into digital signals for processing and analysis by upper control devices such as PLC (Programmable Logic Controller) or DCS (Distributed Control System). It is mainly used to monitor temperature and ensure the stability and quality of the production process.

Input channels: The AB 1797-IRT8 thermocouple input module uses 8 channels for input and can connect multiple thermocouple sensors simultaneously for monitoring temperature at multiple locations or points.

Signal Range: Its signal range is wide, covering 0 to 485 ohms and -40 to 100 millivolts, and can adapt to various application scenarios to meet different signal input needs.

Accuracy: This module has high-precision temperature measurement capabilities, ensuring accurate monitoring of temperature changes.

Communication interface: It provides standard industrial communication interfaces, such as EtherNet/IP or ControlNet, for communication with the upper control system and real-time data transmission and monitoring.

Power consumption and power requirements: The driver of the module has a rated power of 1.6 watts on the module's field side, requires a power supply voltage of less than 9.5 volts DC for Ui, and a current consumption of less than 1 ampere for Li.

Design and installation: The AB 1797-IRT8 is equipped with an IP20 casing, which can be safely used in indoor environments of the factory and effectively prevent water spraying and splashing. In order to install the input module in different positions, the drive is equipped with DIN rail mounting options and panel mounting options. In addition, it uses 12 AWG twisted cables for connection, providing stable electrical connections.

Programming and usage: The interface design of this module is simple, and the programming language is easy for engineering and technical personnel to accept. It provides convenience for those who are not familiar with electronic circuits, do not understand computer principles, and assembly language to use computers for industrial control.

Overall, The AB 1797-IRT8 thermocouple input module is a powerful, easy-to-use, high-precision, and reliable temperature monitoring solution widely used in various industrial environments.

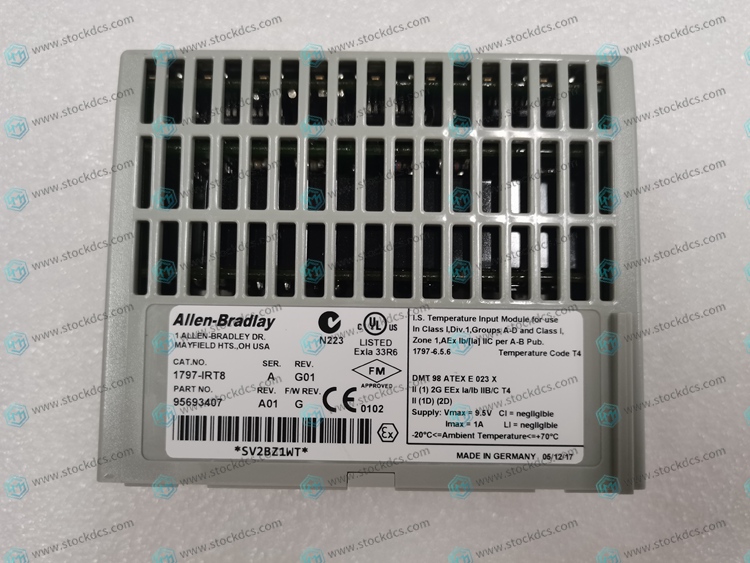

Product image
