Product Details Introduction

The ALSTOM DFI-150-0003 DCS control system is introduced as follows:

Basic concepts:

DCS (Distributed Control System), also known as Distributed Control System, is a technology applied in various process automatic control systems. Its characteristic lies in decentralized arrangement and centralized control, which means that various parts of the system can be distributed in different positions, but the overall operation and control are concentrated at one or more central control points.

System composition:

Hardware part: including engineer station, operator station, history station I/O cards, communication cards, on-site control stations, etc.

Engineer station: mainly used for writing and modifying control logic programs, such as modifying graphics, parameter settings, database configuration, offline queries, etc.

Operator station: used for monitoring, operation adjustment, online query, alarm, etc.

Historical Station: Used to store historical data, such as historical curves, historical alarms, historical operation records, etc.

Communication card: used to receive and send data signals, enabling communication between different systems and devices.

On site control station: Install control cabinets for I/O cards to achieve data acquisition and control.

Software section: including system database configuration, logic configuration, graphics configuration, offline query software, etc., used to achieve the control logic and interface operation of the entire system.

System features:

High reliability: Due to the dispersed control functions of the system on each computer and the adoption of fault-tolerant design, computer failures will not result in the loss of other system functions.

Openness: Adopting an open, standardized, modular, and serialized design to facilitate the modification or expansion of system functions.

Flexibility: Software and hardware can be configured through configuration software to form the required control system.

Easy to maintain: Small or micro specialized computers with single functions have the characteristic of simple and convenient maintenance.

Coordination: transmitting various data through communication networks and sharing and coordinating information throughout the entire system.

Full control functions: integrating continuous control, sequential control, and batch control, it can achieve multiple control algorithms.

Application scenario:

The ALSTOM DFI-150-0003 DCS control system is suitable for various industrial automation scenarios, such as manufacturing processes, chemical plants, power plants, etc. Through its powerful control functions and flexible configuration capabilities, it achieves precise control of the production process.

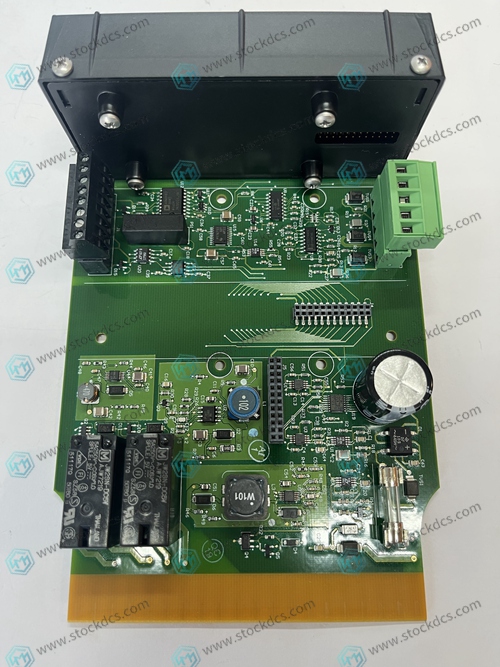

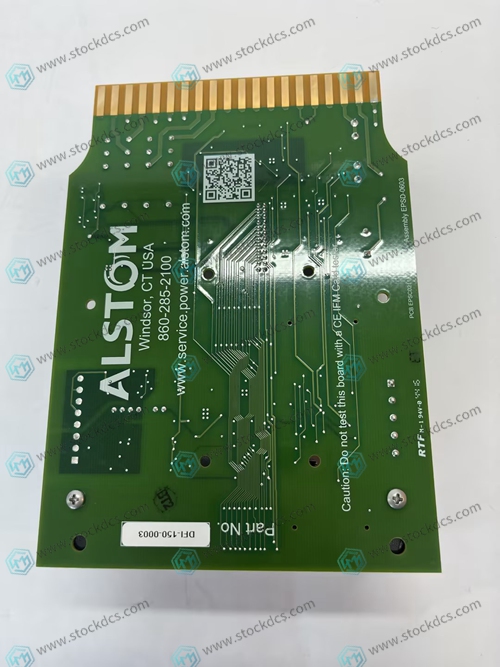

Product image
