DP820 Input/Output Module

DP820 Input/Output Module

Product Details Introduction

The DP820 input/output module is a product from ABB, with the following characteristics and application scenarios:

Main functions:

Lighting control: The DP820 module can be applied to lighting control systems, such as lane lighting and conference room lighting. When there are no moving objects, maintain partial lighting in the lane; When there are moving objects, zone lighting control is achieved through detector monitoring. In conference rooms, lighting scenes for different purposes can be programmed, such as regular meetings, important meetings, etc.

Emergency lighting: This module supports automatic switching of dual power sources to ensure lighting in public areas during emergency situations.

Governor function (in specific applications): The DP820 module can also be used as a governor to maintain stable diesel engine speed and prevent stalling at low speeds and speeding at high speeds.

Technical specifications:

Loop control: The module supports control of up to 12 loops, and each loop can be set with an opening delay to avoid the impact of high current caused by starting multiple loops simultaneously.

Programming and scenario settings: With local and remote programming and testing functions, supporting up to 128 scenario settings, each scenario is composed of any combination of circuits.

Protection function: The dimming interface has ± 2kV ESD protection function, as well as short-circuit protection and overcurrent protection functions.

Dimming accuracy: The dimming accuracy can reach up to 3600 levels, with 0% -100% dimming levels, and can be set according to the type of lamp.

Application field:

Suitable for lighting control in small areas such as exhibition halls, conference halls, museums, villas, etc.

It can also be applied to mechanical equipment such as diesel engines that require precise speed control.

Operation and Control:

The module provides manual switch control buttons, which can manually control the switch of the circuit in case of network failure.

Set the device ID and scene through the MOT system control software.

Installation and maintenance:

The installation of the execution module is convenient, and the wiring method is simple.

Support online refreshing of programs for easy maintenance and upgrades.

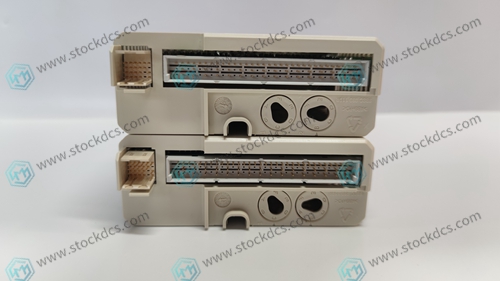

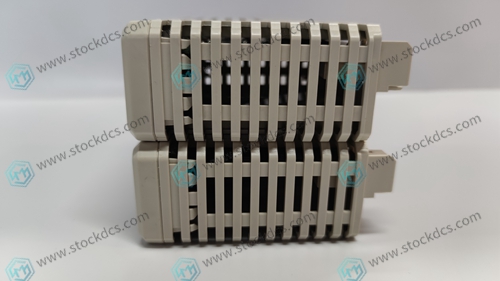

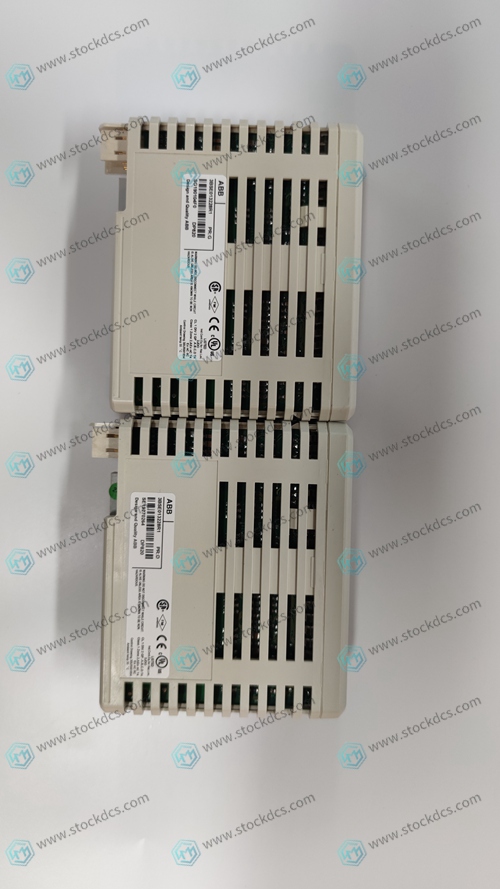

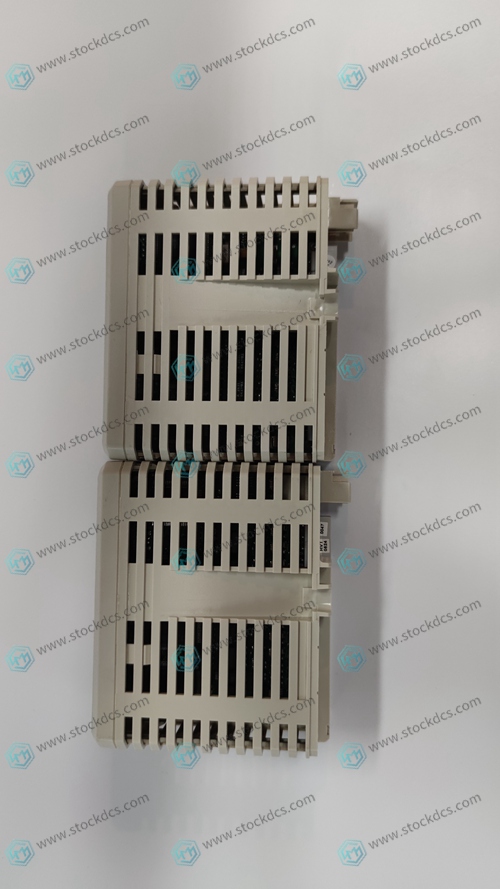

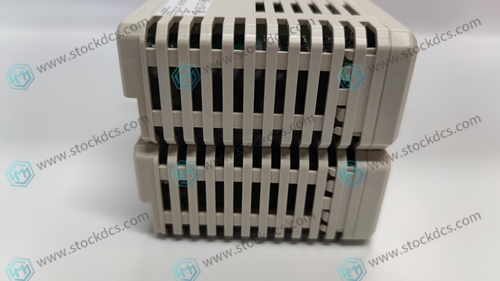

Product image
