Product Details Introduction

The NI PCI-6229 multifunctional data acquisition card is a high-performance data acquisition device produced by National Instruments (NI), designed specifically for various measurement and control applications. The following is a detailed introduction about NI PCI-6229:

Main features:

Multifunctionality: PCI-6229 supports analog input, analog output, and digital I/O, and has a wide range of application scenarios.

High precision: This data acquisition card has high-precision measurement capabilities, ensuring the accuracy and reliability of data.

High speed: The high-speed sampling rate makes data collection faster, meeting applications with high real-time requirements.

Programmable gain: With programmable gain function, the amplification factor of the signal can be adjusted as needed to adapt to the amplitude range of different input signals.

Technical parameters:

Analog input channels: 16, providing 16 bit resolution and a maximum sampling rate of 250 kS/s.

Analog output channels: 2, usually with similar resolution and output capability as analog inputs.

Digital I/O lines: 24, used to receive and send digital signals, such as switch status, counter input, etc.

Input/output voltage range: usually ± 10V, but the specific range may vary depending on application requirements.

Connector type: BNC, which is a common signal connector suitable for multiple signal types.

Supported bus: PCI, which is a common computer bus interface used to connect various expansion cards and devices.

Working temperature range: 0 ℃~55 ℃, ensuring stable operation under various environmental conditions.

Application scenario:

Automation: PCI-6229 can be used for data collection and control in automation systems, achieving efficient operation of automated processes.

Testing and Measurement: In testing and measurement applications, PCI-6229 can accurately capture various analog and digital signals, providing reliable data support for testing and analysis.

Control: In the control system, PCI-6229 can achieve real-time data acquisition and control signal output, ensuring the stability and accuracy of the system.

Advantages:

High cost-effectiveness: As a powerful data acquisition card, PCI-6229 has a relatively reasonable price and high cost-effectiveness.

Easy to integrate: This data acquisition card supports multiple communication interfaces and bus types, making it easy to integrate with other devices and systems.

Flexibility and efficiency: Through multiple analog input channels and digital I/O lines, PCI-6229 can process multiple signals simultaneously, improving the flexibility and efficiency of the system.

In short, The NI PCI-6229 multifunctional data acquisition card is a powerful and stable data acquisition device widely used in automation, testing and measurement, control and other fields. Its high precision, high speed, and programmable gain make it one of the ideal choices in the field of data acquisition.

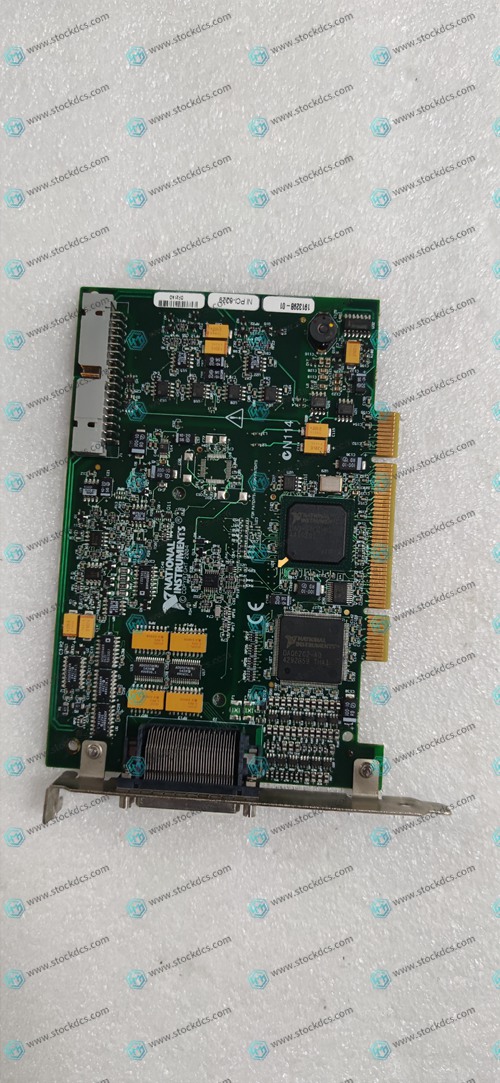

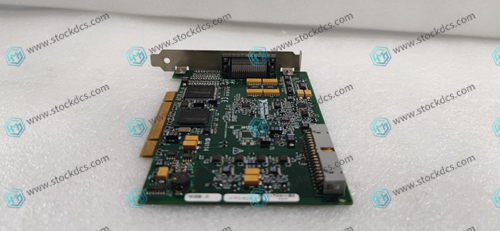

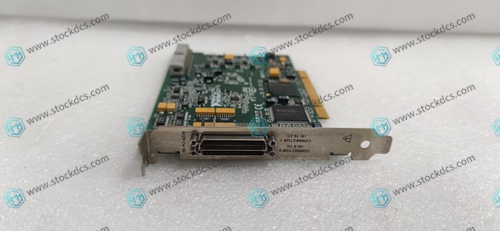

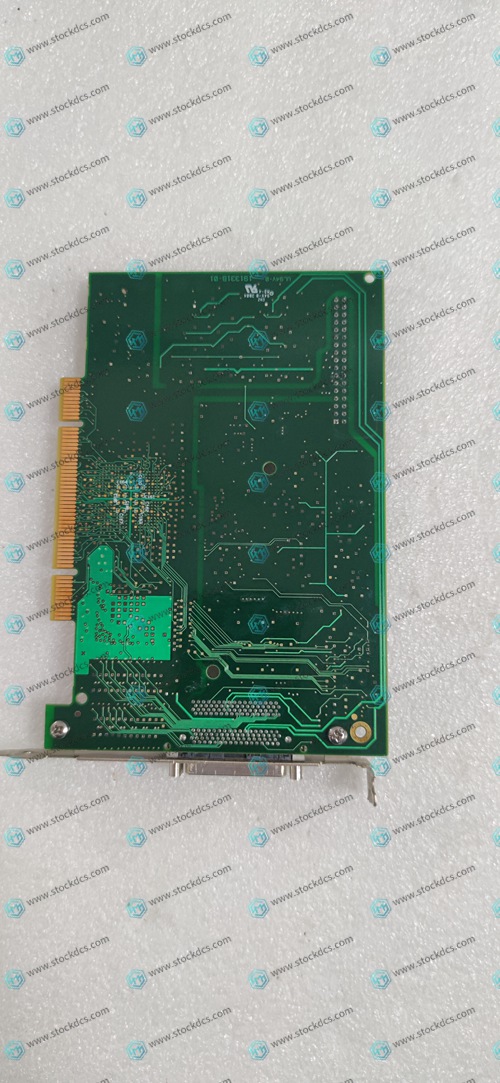

Product image
