Product Details Introduction

REC670 1MRK002814-AB High Voltage Measurement and Control Protection Device Manual

1、 Product Overview

REC670 1MRK002814-AB is a high-voltage measurement and control protection device launched by ABB, designed specifically for power systems and industrial automation applications. This device integrates control, protection, and monitoring, and is an intelligent electronic device. Its powerful protection functions, flexible protection configurations, and scalable hardware design can meet the specific requirements of users.

2、 Main features

Powerful protection function: REC670 1MRK002814-AB has multiple protection functions, such as overcurrent, grounding, phase discontinuity and overload protection, as well as surge monitoring, to ensure the stable operation of the power system.

Flexible protection configuration: This device allows users to flexibly configure according to their actual needs, including setting protection functions and action thresholds, as well as selecting the functions of alarm and fault indicator lights.

Scalable hardware design: The hardware design of REC670 1MRK002814-AB supports expansion and can be upgraded or added with functional modules as needed to meet the constantly evolving needs of the power system.

Communication capability: This device supports multiple communication protocols, such as IEC61850-8-1, IEC60870-5-103, TCP/IP, EIA-485, DNP3.0, LON, and SPAC37.94, making it convenient for data exchange with other systems or devices.

Monitoring function: REC670 1MRK002814-AB has comprehensive monitoring functions, including real-time data monitoring, event recording, fault recording, etc., helping users to timely understand the operating status of the power system.

3、 Technical specifications

Rated voltage: According to specific models and configurations, REC670 1MRK002814-AB is suitable for power systems of different voltage levels.

Rated current: Depending on the specific model and configuration, this device supports monitoring and protection in different current ranges.

Number of channels: With multiple input and output channels, it supports the acquisition and control of multiple signals.

Communication Interface: Provides multiple communication interfaces for users to choose and configure according to their actual needs.

4、 Installation and debugging

Installation location: REC670 1MRK002814-AB should be installed in a location that is easy to access, operate, and maintain, usually near power equipment.

Power connection: Connect the device correctly to the power supply and ensure that the power line is stable and reliable.

Signal line connection: Connect the corresponding signal lines according to actual needs, ensuring good contact and firm fixation of the lines.

Parameter setting: Based on the actual needs of the power system and the technical specifications of the equipment, necessary parameter settings and configurations are made.

Debugging and testing: After completing the installation and parameter settings, necessary debugging and testing should be carried out to ensure that the equipment can work properly and meet user needs.

5、 Operation and Maintenance

Operation interface: REC670 1MRK002814-AB provides an intuitive and easy-to-use operation interface, allowing users to perform various operations and function selections through the interface.

Data display: The device can display the real-time operation status and data information of the power system, helping users to timely understand the system situation.

Fault handling: When the device detects a fault, it will take corresponding actions and alarm prompts, and users can take corresponding actions according to the prompts.

Maintenance: Regular maintenance and upkeep of equipment, including cleaning, tightening screws, inspecting cables, etc., to ensure long-term stable operation of the equipment.

6、 Precautions

During installation and debugging, please ensure compliance with relevant safety regulations and operating procedures to ensure personal and equipment safety.

During use, please regularly inspect and maintain the equipment to ensure its normal operation and extend its service life

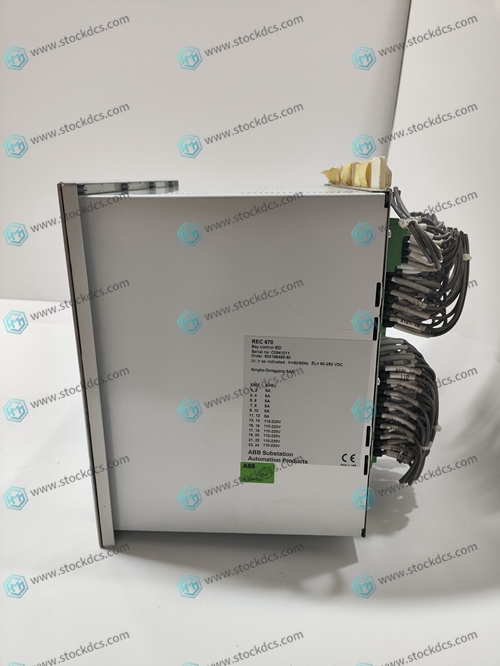

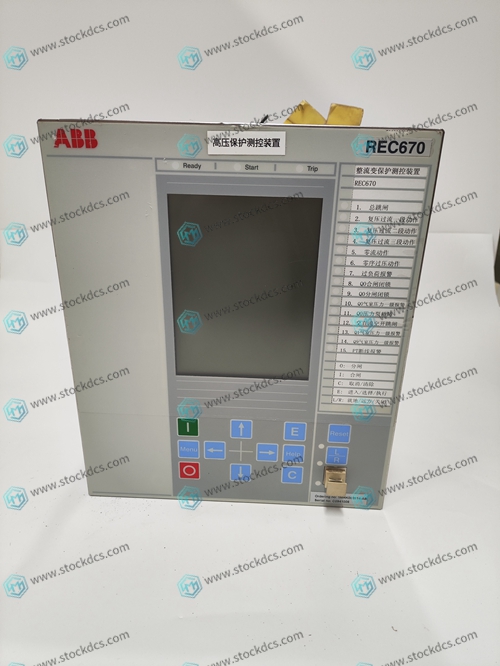

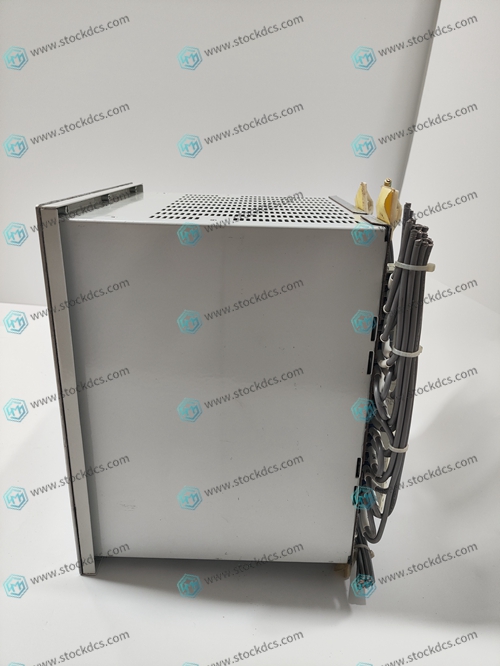

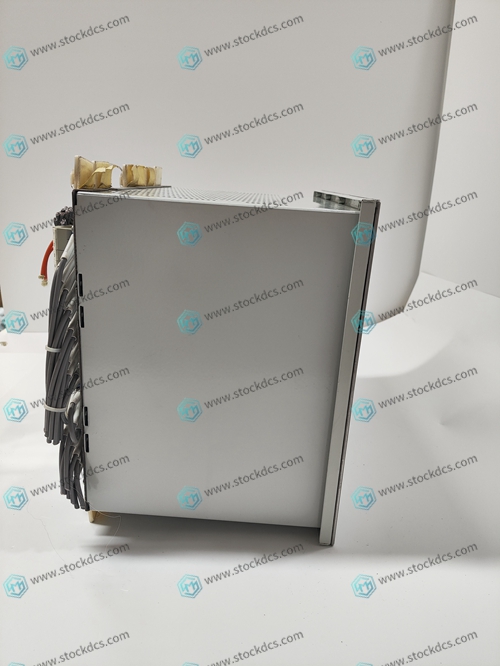

Product image
