TRICONEX 3564 Digital Input Module
Product Details Introduction
TRICONEX 3564 Digital Input Module Manual
1、 Product Overview
The TRICONEX 3564 digital input module is designed specifically for industrial safety instrumented systems (SIS) and is primarily used to process digital signals from field equipment. This module supports multiple types of digital inputs, such as switch inputs, pulse inputs, etc., and is suitable for various industrial environments, especially in fields with extremely high safety requirements such as petroleum, chemical, and natural gas.
2、 Product features
High reliability:
The TRICONEX system is renowned for its triple redundancy design, and the 3564 module also follows this principle, ensuring high availability and fault tolerance of the system.
The self diagnostic function can timely detect faults and provide alarms, further improving the reliability of the system.
Isolation input:
Provide 24VDC digital input, each input may have isolation function to reduce electromagnetic interference and improve signal purity.
Wide application range:
Suitable for various industrial environments, including petroleum, chemical, natural gas, and other fields.
Easy to install and maintain:
Designed with good physical interfaces and diagnostic functions, facilitating on-site installation and troubleshooting.
Compatibility:
It can seamlessly integrate into the security control system of Triconex and work together with other Triconex modules (such as the 3604E output module).
3、 Technical specifications
Input Type: Supports multiple digital input types, such as switch input, pulse input, etc.
Input voltage: 24VDC.
Isolation function: Each input may have isolation function.
Working environment: Suitable for various industrial environments.
4、 Installation and Configuration
Installation:
Please follow the installation instructions in the product manual to ensure that all input signals are correctly connected and voltage levels match.
Configuration:
In the system design phase, the input parameters of the 3564 module should be correctly configured in the Triconex system software according to specific application requirements.
5、 Precautions
Correct wiring:
Ensure that all input signals are correctly connected and the voltage level matches (in this example, 24VDC) to avoid overvoltage or incorrect connection to the module, in order to avoid damaging the module.
Electrostatic protection:
During operation and installation, appropriate electrostatic protection measures need to be taken to prevent electrostatic discharge from damaging the internal circuits of the module.
System configuration:
During the system design phase, please ensure that the correct system configuration is carried out according to the application requirements.
Regular maintenance:
Regularly check the working status of the module, including the stability of input signals and the health status of the module itself, and replace aging components in a timely manner.
Follow safety regulations:
During installation and use, it is essential to comply with relevant electrical safety standards and the guidance in the Triconex system operation manual to ensure the safety of personnel and equipment.
6、 Product application
The TRICONEX 3564 digital input module is widely used in industrial automation, process control systems, and other fields, providing a reliable digital signal input solution for the safe operation of the system.

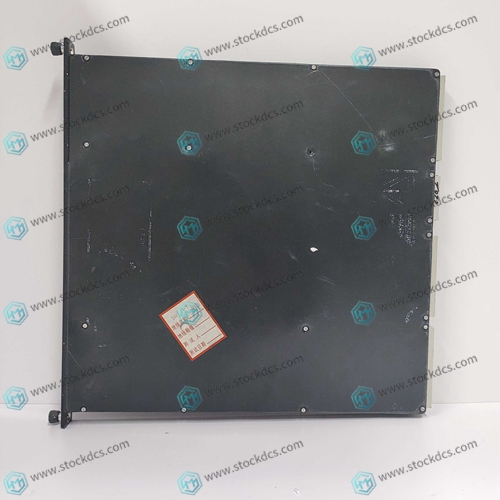

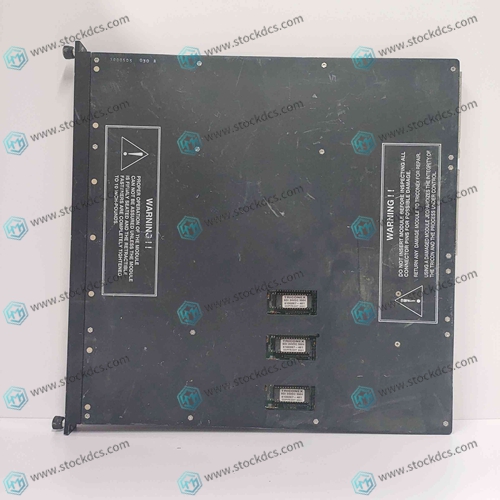

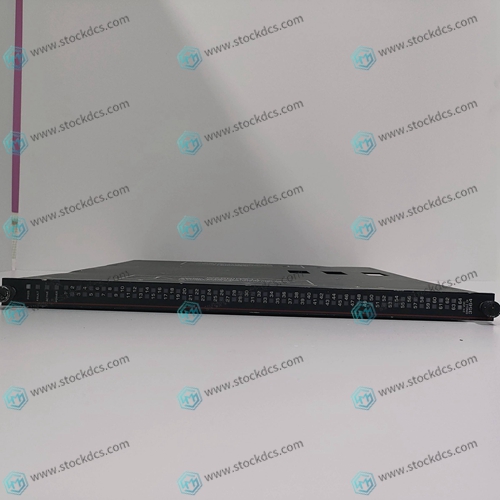

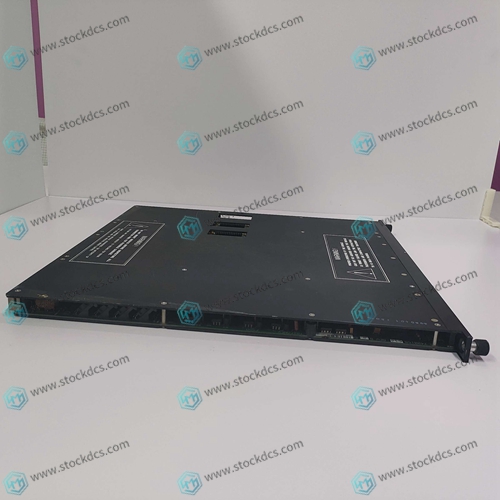

Product image
