ZYGO ZMI-2002 8020-0211 Measurement Board

Product Details Introduction

ZYGO ZMI-2002 8020-0211 Measurement Board Manual

1、 Product Overview

The ZYGO ZMI-2002 8020-0211 measurement board is a dual axis control board designed specifically for high-precision measurement, mainly used in ZYGO's laser interferometer system. It is mainly used for precise position and motion measurement of two coordinate axes (usually the X and Y axes), and is crucial for applications that require extremely high measurement accuracy and repeatability.

2、 Main features

High precision measurement: providing measurement accuracy at the micrometer or even nanometer level to meet the needs of high-precision manufacturing and testing.

Dual axis synchronous measurement: It can accurately measure the displacement of two axes simultaneously, which is particularly crucial for complex three-dimensional contour and surface measurement.

Digital signal processing: Equipped with advanced digital signal processors, it can quickly process interference signals, reduce noise, and provide high-quality measurement data.

Compatibility and Scalability: Designed for integration into ZYGO laser interferometer systems, it typically supports seamless integration with other ZYGO components and software, facilitating system upgrades and expansion.

3、 Technical specifications

Power requirement:+5V ± 5% @ 3.5A (ZMI 2001) ZMI 2002、ZMI PC)

Position format: 36 bit -2 complement

Speed format: 32-bit -2 complement

Time range: 107.4 seconds

Time format: 32-bit complement

Time resolution: 25 nanoseconds

Fiber optic signal: supports reference and measurement

System synchronization: supports clock input or clock output

ZMI VME Compliance: Compliant with VMEBus Specification Revision C.1

4、 Precautions for use

Environmental conditions: Ensure that the usage environment meets the temperature, humidity, and other requirements of the equipment, and avoid environmental factors affecting measurement accuracy.

Correct installation and calibration: Install and calibrate according to the official guidelines provided by ZYGO to ensure the correct alignment and initialization of the measuring shaft.

Regular maintenance: Regularly inspect and maintain modules, including cleaning optical components, inspecting connecting cables, etc., to maintain optimal performance.

Power and grounding: Use a stable and compliant power supply to ensure good grounding and avoid power fluctuations and static interference.

Software and firmware updates: Regularly check and install the latest software and firmware updates for optimal performance and support for new features.

5、 Application field

The ZYGO ZMI-2002 8020-0211 measurement board is widely used in the manufacturing of optical components, precision mechanical components, semiconductor processing, and various scientific research and quality control fields.

6、 Summary

The ZYGO ZMI-2002 8020-0211 measurement board has become the preferred tool in the field of high-precision measurement due to its high precision, dual axis synchronous measurement, and digital signal processing characteristics. By following usage precautions and regular maintenance, it can be ensured that it provides high-quality measurement data in a stable and long-term manner.

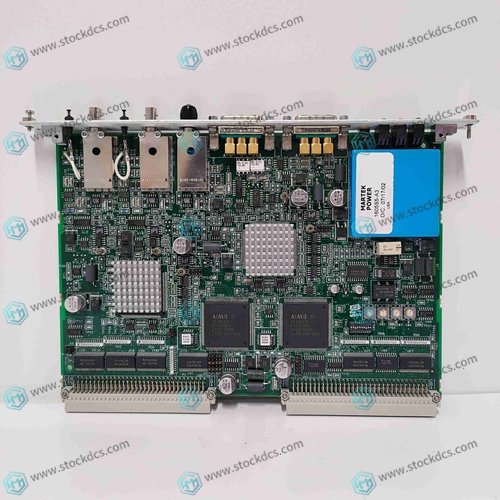

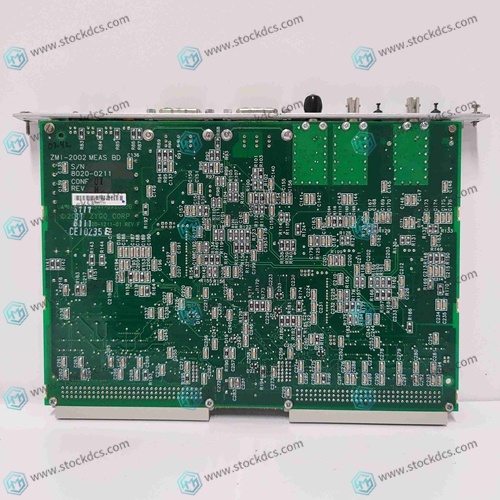

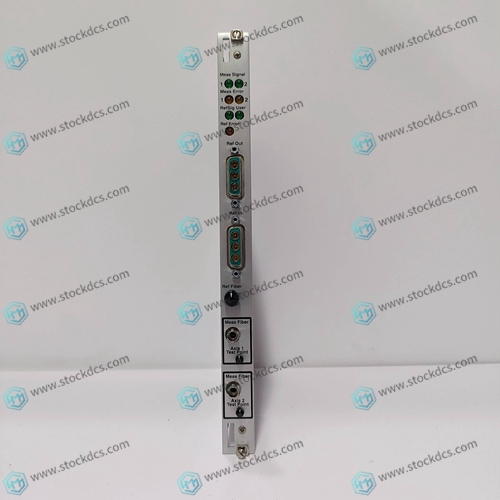

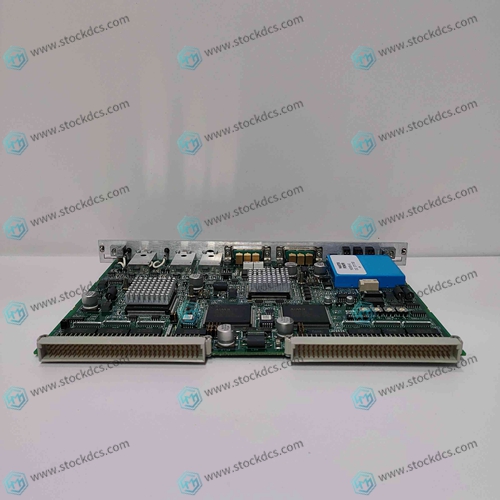

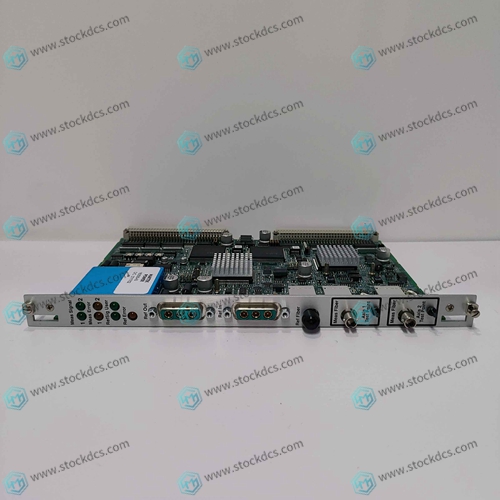

Product image
