VMIC VMIVME-5576 Reflective Memory Interface Manual

1、 Product Overview

The VMIC VMIVME-5576 Reflective Memory Interface Module is a high-performance data sharing solution that allows for high-speed data sharing between up to 256 independent systems (nodes). It is based on fiber channel technology, providing high-speed and stable data transmission, suitable for system environments that require real-time data sharing and communication.

2、 Main features

High speed data transmission:

Supports data transfer rates of up to 6.2 Mbytes/s (without redundant transmission).

In redundant transmission mode, the data transmission speed is 3.2 Mbyte/s.

Large capacity storage:

Each reflective memory board can be configured with onboard SDRAM ranging from 256 KB to 1 MB.

Local SRAM provides fast read access time to stored data.

Software transparency:

The data transmission between nodes is software transparent and does not require I/O overhead.

Sending and receiving FIFOs buffer data during peak data rates, optimizing CPU and bus performance.

Scalability:

Supports network configuration with up to 256 nodes.

The maximum distance between nodes can reach 2000 meters.

Error detection and redundant transmission:

Support redundant transmission mode and suppress errors.

High speed and easy-to-use fiber optic network (170 Mbaud serial).

Global data sharing:

The data written to a node's memory will also be written to the memory of all nodes on the network.

Any node on the network can use a single command to generate interrupts at any other node or all network nodes on the network.

3、 Technical specifications

Data transmission speed: up to 6.2 Mbyte/s for non redundant transmission and 3.2 Mbyte/s for redundant transmission.

Storage capacity: Each node can be configured with onboard SDRAM ranging from 256 KB to 1 MB.

Number of nodes: Supports up to 256 nodes.

Distance between nodes: up to 2000 meters in length.

Fiber optic network: 170 Mbaud serial fiber optic network.

4、 Application field

The VMIC VMIVME-5576 reflective memory interface module is widely used in systems that require real-time data sharing and communication, such as industrial automation, distributed control systems, testing and measurement systems, data centers, etc. Its high-speed and stable data transmission capability and software transparency enable these systems to more effectively share and communicate data, improving overall performance and efficiency.

5、 Installation and Configuration

The installation and configuration of this module need to follow specific steps and requirements, including hardware connections, driver installation, network configuration, etc. For specific steps, please refer to the product manual or contact technical support for detailed guidance.

6、 Precautions

Please ensure to follow the instructions in the product manual during installation and use.

Pay attention to maintaining good fiber optic connections to avoid affecting data transmission speed and stability.

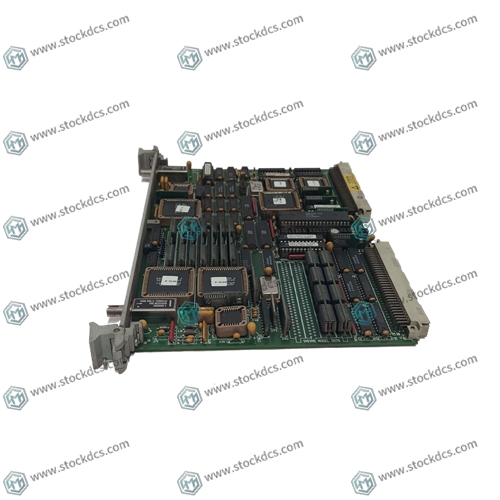

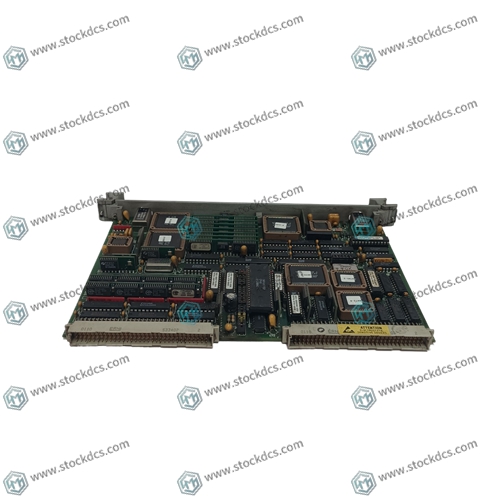

Product image
