086339-001 004707001474 Control Module
Product Details Introduction
086339-001 004707001474 Control Module Manual
1、 Product Overview
Model: 086339-001 004707001474
Brand: ABB
Type: Control module
This control module is a high-performance product from ABB, designed specifically for industrial automation, control systems, and process control applications. The module has multifunctionality and high reliability, and can meet various complex control requirements.
2、 Technical specifications and characteristics
Interface features:
Supports up to 6 dual channel module extensions, allowing users to connect up to 12 SSI sensors through a single network connection.
Compatible with most Gray code or binary SSI sensors, including rotary encoders, linear sensors, barcode readers, and laser distance sensors.
Built in network interface simplifies the position scaling of sensor data.
Latching input provides "snapshot" data capture.
Programming and Compatibility:
Compatible with various PLCs through programming with host controller (PLC) software.
No additional software is required for easy programming and supports DIN rail installation.
Compatible with any PLC that supports the product's available network.
Performance parameters:
Transistor type switching speed is fast (usually 0.2ms), with a load capacity of about 0.2-0.3A and 24VDC.
Can be used for switch logic control, closed-loop process control, industrial robot control, and composing multi-level control systems.
3、 Application field
Industrial automation: used for controlling automated production lines.
Control system: serving as a critical control node in the control system.
Process control: used for process monitoring and control in industries such as petrochemicals and power.
4、 Installation and Maintenance
Installation:
Please ensure to follow the installation instructions provided by the manufacturer for installation.
The module should be installed in a dry, ventilated, and dust-free environment.
Follow electrical safety regulations to ensure correct power connections.
Maintenance:
Regularly check the operational status of the module to ensure its normal operation.
If there are any abnormalities, please contact professional technical personnel for maintenance in a timely manner.
Regularly clean the modules to maintain good working condition.
5、 Precautions
Do not use the module in damp, high temperature, or corrosive environments to ensure its performance and safety.
During installation, use, and maintenance, please follow electrical safety regulations and manufacturer's operating guidelines.
6、 Additional information
This module is an imported industrial control spare part from ABB company, which has a wide range of application prospects.

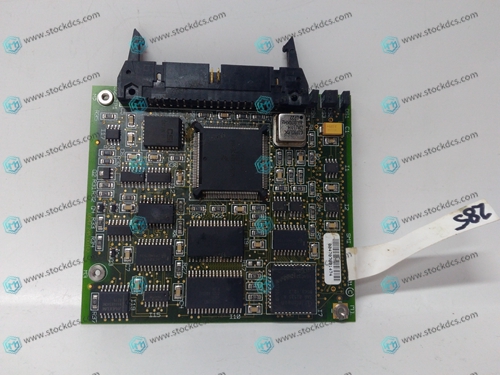

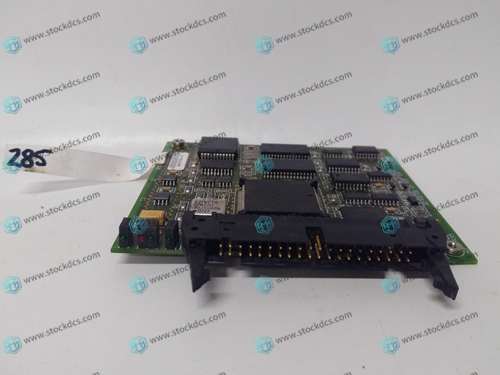

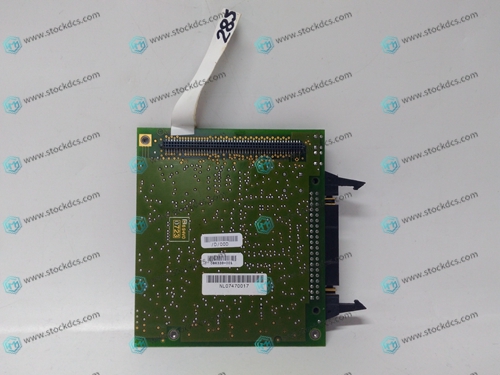

Product image
