Product Details Introduction

DS200PCCAG1ABB DC Power Connection Board Manual

1、 Product Overview

DS200PCCAG1ABB DC Power Connection Board is a power connection card produced by GE Industrial Control Systems, used as an interface board between SCR (Silicon Controlled Rectifier) and driver control circuits. This connecting plate belongs to the Mark V series and has high reliability and stability, widely used in the field of industrial automation and control systems.

2、 Main features

Interface function: DS200PCCAG1ABB serves as an interface board that can connect SCR and driver control circuits to ensure accurate signal transmission.

Configuration: There are four configurable jumpers (JP1, JP2, WP3, and WP4) on the connection board, which can be configured specifically according to application requirements.

JP1 and JP2 jumpers are used together to select the DC armature voltage range.

The WP3 jumper is used to configure the connection status of the buffer and voltage feedback.

The WP4 jumper is used to indicate the connection between the buffer and the voltage feedback channel.

Voltage specification: It has an armature voltage scaling range of 240-630V and supports AC voltage up to 600 V rms.

Renewable: As a G1 PCCA board, DS200PCCAG1ABB is renewable and has high environmental and economic benefits.

3、 Technical specifications

Manufacturer: GE Industrial Control Systems

Series: Mark V

Part number: DS200PCCAG1ABB

Product type: PCCA power connection card

Armature voltage: 240-630V

AC voltage: ≤ 600 V rms

Weight: 1 pound

Transportation dimensions: 18 x 12 x 12 inches

Country of origin: United States

4、 Use and Maintenance

Installation: When installing DS200PCCAG1ABB, please follow the electrostatic protection guidelines to prevent the accumulation of static electricity from causing damage to the circuit board.

Operation: Please ensure to follow relevant safety regulations during operation to avoid unnecessary damage or personal injury to the equipment.

Maintenance: DS200PCCAG1ABB is repairable in most cases. If necessary, please contact professional repair personnel for assistance.

5、 Manual reference

For detailed information about DS200PCCAG1ABB, you can refer to the GE Industrial Control System User Manual GEI-100161A and GEI-100161B. These manuals provide detailed guidance on product installation, configuration, operation, and maintenance.

6、 Precautions

Do not use or store DS200PCCAG1ABB in damp, dusty, or high-temperature environments.

When handling, touching, or moving circuit boards, always wear a grounding strap to prevent static electricity accumulation.

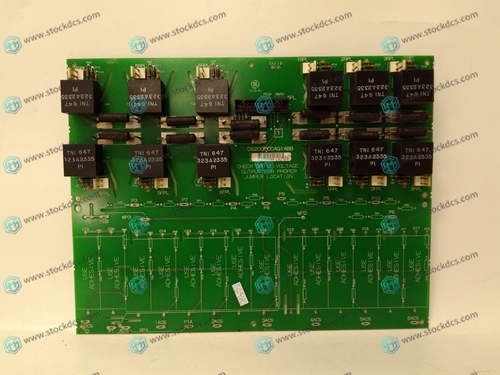

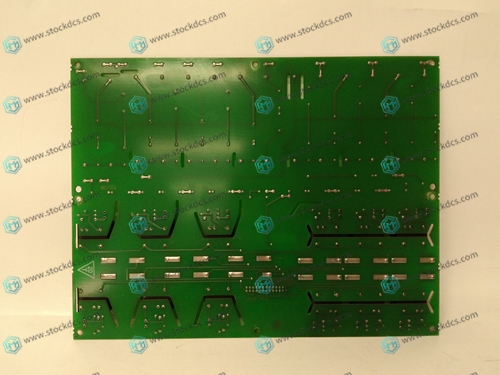

Product image
