MOTOROLA MVME162-213 microprocessor

MOTOROLA MVME162-213 microprocessor

Product Details Introduction

MOTOROLA MVME162-213 microprocessor manual

1、 Product Overview

MOTOROLA MVME162-213 is a high-performance embedded controller microprocessor module suitable for industrial automation, control systems, and other applications that require high performance and reliability. This module provides rich functions and interfaces to meet the needs of various complex applications.

2、 Main features

Processor performance:

The MVME162-213 is equipped with an MC68040 or MC68LC040 enhanced 32-bit microprocessor, providing powerful computing power.

Supports two clock speed options, 32 MHz and 25 MHz, to meet different performance requirements.

Equipped with 8KB cache, MMU, and FPU (only in MC68040 version), further improving performance.

Memory and storage:

Provide 4, 8, or 16MB of shared DRAM to meet data storage needs.

512KB SRAM with backup battery to ensure data is not lost in case of power outage.

1MB flash memory, can be used for onboard monitors/debuggers or user installed firmware.

Interface and bus:

A32/D64 VME bus master/slave interface, supporting high-performance DMA operations.

Provide two serial communication ports that support EIA-232-D and EIA-422 (V.36) standards.

Four 16 or 32-bit IndustryPacks ® Ports, each with a DMA channel, supporting multiple expansion modules.

Timer and Watchdog:

Six 32-bit timers (four without VMEbus) and one watchdog timer ensure stable system operation.

Optional features:

Optional SCSI-bus interface with 32-bit local bus burst DMA, expanding storage and data transfer capabilities.

Optional Ethernet transceiver interface with 32-bit local bus DMA, supporting network communication.

3、 Technical specifications

Model: MVME162-213

Microprocessor: MC68040 or MC68LC040

Clock speed: 32 MHz or 25 MHz

Memory: 4, 8, or 16MB shared DRAM, 512KB SRAM (with backup battery), 1MB flash memory

Interface: A32/D64 VME bus, two serial communication ports, four IndustryPack ® port

Timer: Six 32-bit timers (four without VMEbus), one watchdog timer

Optional features: SCSI-bus interface, Ethernet transceiver interface

4、 Installation and Configuration

When installing the MVME162-213 microprocessor module, please follow the instructions in the product manual to ensure proper connection of all interfaces and cables. During the configuration process, you can use the corresponding configuration software or tools to set parameters and customize functions.

5、 Precautions

During the installation and configuration process, please ensure to follow the instructions and safety regulations in the product manual.

If you encounter any problems or malfunctions, please contact professional technical personnel in a timely manner for handling.

The above is a brief manual for the MOTOROLA MVME162-213 microprocessor

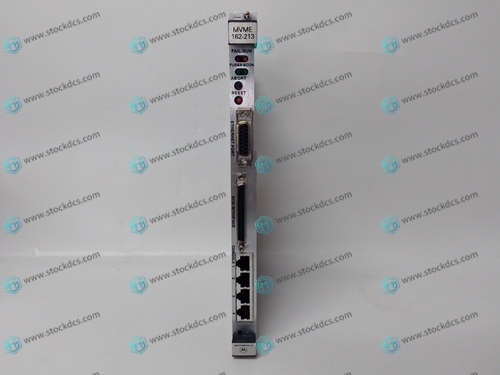

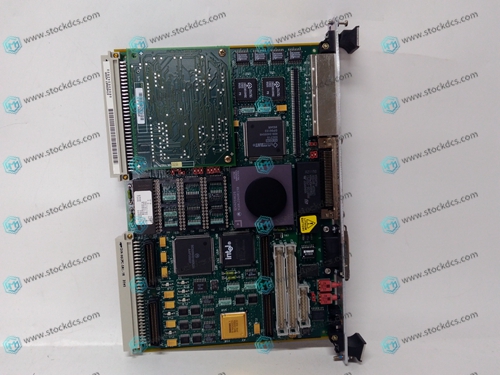

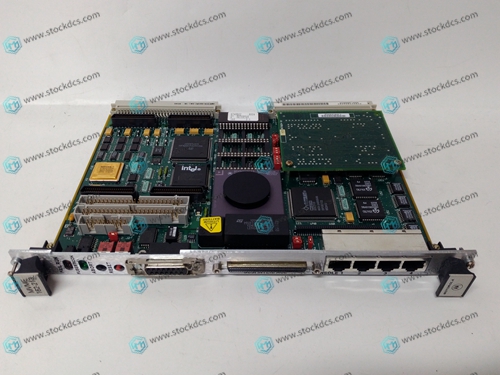

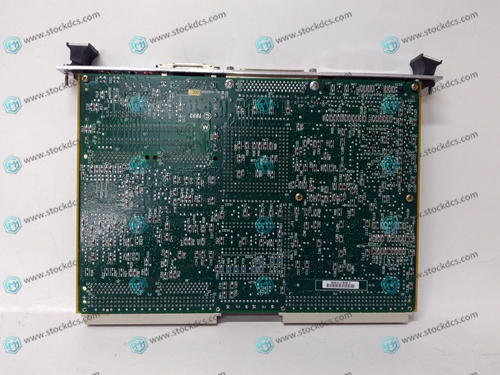

Product image
