Product Details Introduction

PP836 3BSE042237R1 Touch Screen Module Manual

1、 Product Overview

PP836 3BSE042237R1 is a touch screen module commonly used in human-machine interface (HMI) applications. It provides an efficient and reliable interactive experience for industrial automation and control systems with its intuitive user interface, graphical display, multi touch technology, and high-resolution display.

2、 Main features

Touch screen interface: PP836 3BSE042237R1 is equipped with a touch screen interface, allowing users to interact and operate with the control system intuitively through the touch screen.

Graphical interface: This module is usually equipped with a graphical interface that can display device status, parameters, charts, and other information, providing an intuitive operating interface.

Multi touch: Supports multi touch technology, allowing users to operate with their fingers or stylus, improving flexibility and convenience.

High resolution display: With a high-resolution display screen, it can clearly display images and text, providing a good user experience.

Communication interface: usually has a communication interface, which can exchange and communicate data with control systems or other devices, and achieve remote monitoring and operation.

Durability: It has good durability and anti-interference ability, suitable for long-term stable operation in industrial environments.

Customized interface: supports interface customization, allowing users to customize interface layout and function buttons according to actual needs, achieving personalized operation interface.

3、 Functional applications

User interface: Provides an intuitive user interface, allowing users to easily browse and operate the system or device through interactive operations on the touch screen.

Visual control: can be used to monitor and control various devices, processes, or systems. Through the touch screen, users can view and adjust parameters, set operating modes, start and stop devices, and adjust parameters in real time.

Data display and analysis: Display real-time data, trend charts, reports, and other related information to help users analyze data, monitor system status and performance, and make timely decisions.

Alarm and Notification: Monitor the status of equipment or systems and display alarm information or send notifications when needed, enabling operators to quickly respond to problems and take appropriate measures.

Remote access and control: Supports remote access and control functions, making it convenient for users to perform remote operations and management.

4、 Application scope

The PP836 3BSE042237R1 touch screen module is widely used in various industrial control systems and equipment, such as production line control, equipment monitoring, process control, and other fields, to achieve human-machine interaction and operation control. Specific application areas include packaging machinery, plastic machinery, printing and dyeing, printing, pressing, lifting machinery, energy optimization, intelligent buildings, marine equipment control, wind power generation systems, municipal pumping stations, air conditioning and refrigeration systems, municipal engineering, environmental engineering, steel metallurgy, petrochemical industry, power automation, etc.

5、 Technical parameters

This module adopts a logically independent dual bus electrical interface to achieve backup of the electrical interface or single device access to a dual redundant bus system, improving the reliability and stability of the system. Supports multiple types of fiber optic transmission, including multimode and single-mode fibers, to meet different transmission needs. It has low bit error rate and low signal delay characteristics, ensuring the accuracy and real-time performance of data transmission.

6、 Installation and Maintenance

Please follow the instructions and safety regulations in the product manual during installation to ensure that the touch screen module is correctly installed and all necessary cables and connectors are connected. Regularly inspect and clean the surface and interior of the touch screen module to prevent the accumulation of dust and dirt from affecting the performance of the module.

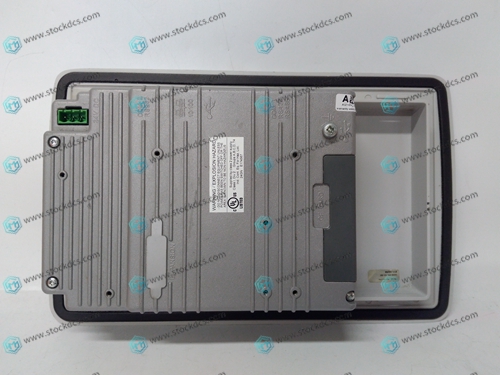

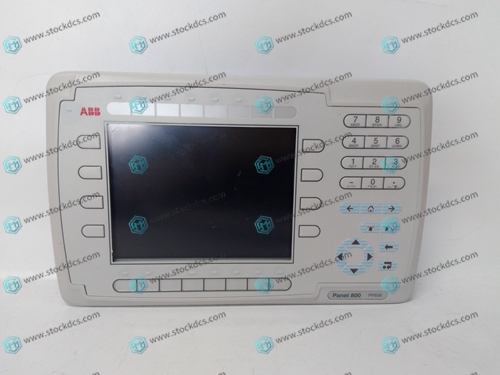

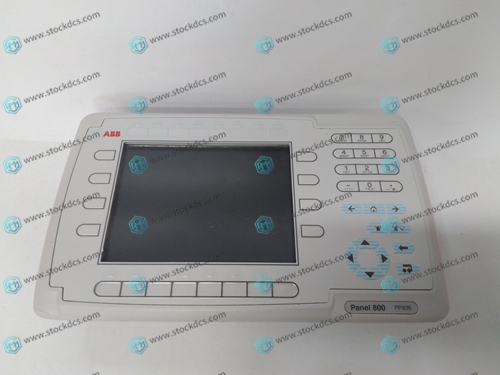

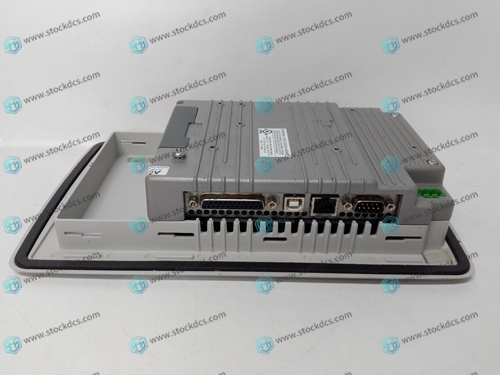

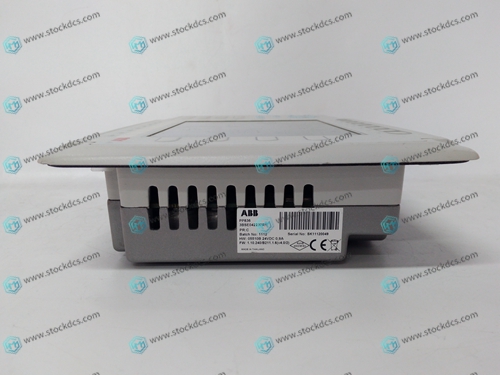

Product image
