HONEYWELL 05701-A-0301 Controller Module

HONEYWELL 05701-A-0301 Controller Module

Product Details Introduction

HONEYWELL 05701-A-0301 Controller Module Manual

1、 Product Overview

HONEYWELL 05701-A-0301 is a single channel loop input control card launched by Honeywell Corporation. This control card is mainly used to measure and control analog signals in various industrial processes, such as temperature, pressure, flow rate, liquid level, and other parameters. It adopts high-quality creativity and design, provides leading measurement technology, and ensures precise process control.

2、 Main features

High precision measurement: 05701-A-0301 provides high-precision measurements with an accuracy of ± 0.1% of full scale and a resolution of 0.01% of full scale.

High efficiency: Adopting advanced technology and design to ensure long-term stable operation and provide efficient process control.

Easy to use: Provides a simple installation and configuration process, making it convenient for users to operate and maintain.

Strong scalability: Compatible with other Honeywell control systems, meeting various application requirements, and achieving flexible system expansion.

Strong universality: can be used to measure and control various types of analog signals, such as current, voltage, thermocouple, thermal resistance, etc.

3、 Technical specifications

Input type: Analog input

Input signals: current, voltage, thermocouple, thermal resistance, etc

Input range: configurable as needed

Accuracy: ± 0.1% of full scale

Resolution: 0.01% of full scale

Response time:<2 seconds

Power supply voltage: 24V DC

Working temperature: -40 ° C to+85 ° C

Storage temperature: -55 ° C to+125 ° C

Protection level: IP67

Size: 90mm x 60mm x 25mm

Weight: 150 grams

Material: Magnesium alloy

4、 Application field

HONEYWELL 05701-A-0301 can be widely used in the following industries and fields:

Oil and natural gas

chemical

power

Food and Beverages

Water and wastewater treatment

manufacturing

energy

Public utilities

environmental protection

5、 Installation and Configuration

When installing and configuring the 05701-A-0301 controller module, please follow the following steps (specific steps may vary depending on actual application, please refer to the product manual):

Installation: Insert the control card into the appropriate slot, ensuring that the connection is secure and meets safety requirements.

Wiring: According to the wiring diagram in the product manual, correctly connect the input signal line, power line, etc. to the control card.

Configuration: Use appropriate programming or configuration software to set parameters and program control logic for the control card.

Testing: After the configuration is completed, perform necessary tests to ensure that the control card works properly and meets application requirements.

6、 Precautions

During installation and use, please follow relevant safety regulations and operating guidelines.

Do not make unauthorized modifications or repairs to the control card to avoid affecting its performance and safety.

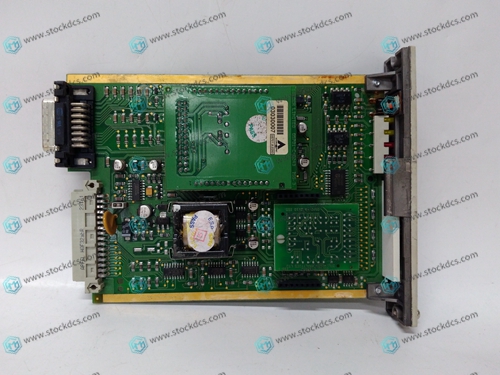

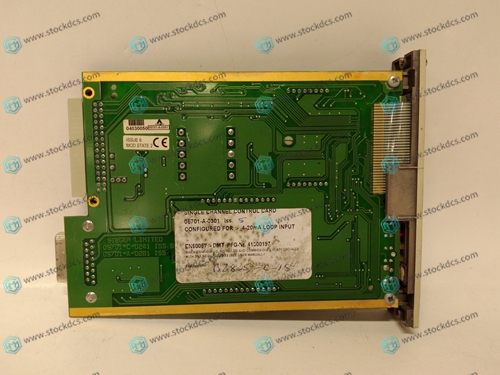

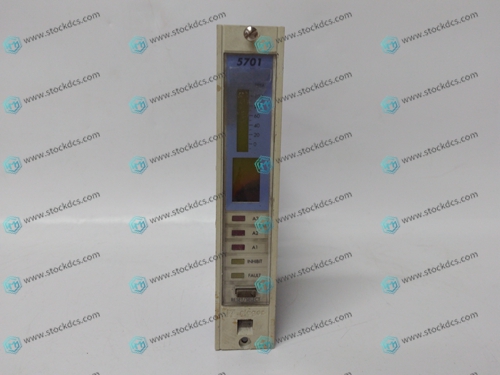

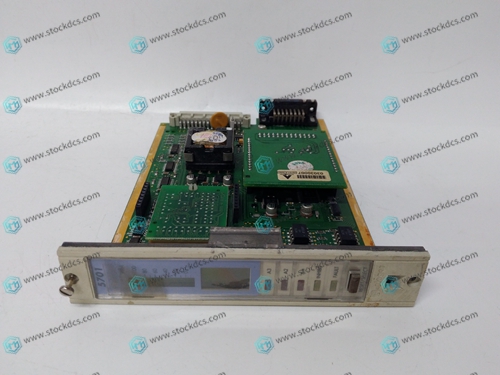

Product image
