Bentley 1900/65A-01-01-00-00 detection module

Bentley 1900/65A-01-01-00-00 detection module

Product Details Introduction

Bentley 1900/65A-01-01-00-00 Testing Module Manual

1、 Product Overview

The Bentley 1900/65A-01-01-00-00 detection module is a universal device monitor launched by Bently Nevada, aimed at continuously monitoring and protecting devices used in various applications and industries. Its low cost makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection.

2、 Main features

Sensor input:

Provide four sensor inputs, and the software can configure each sensor input to support 2-wire and 3-wire accelerometers, speed sensors, or proximity sensors.

Four temperature inputs support E, J, K, and T type thermocouples as well as 2-wire or 3-wire RTDs.

Output function:

Equipped with six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output.

Users can use the 1900 configuration software to configure relay contacts and perform switch operations based on the determination, alarm, and danger status of any channel or channel combination.

Communication interface:

Supports Modbus communication and connects to various systems (such as DCS, SCADA, PLC, etc.) through Ethernet and software configurable RS232/485 serial ports.

The Modbus gateway option allows the monitor to directly provide static variables, status, event lists, time, and date information to any Modbus client.

Configuration and Display:

Users can create configuration files using software running on their laptop or PC, and download the files to their monitor through a built-in Ethernet connection.

Supports optional display screens/keyboards for viewing channel information or making minor configuration changes.

Application scope:

Suitable for continuous monitoring and protection of general purpose equipment or non critical equipment in multiple industries and applications.

3、 Technical parameters (partial)

Input Type: Supports multiple sensor types and temperature inputs.

Output types: six relay outputs, four 4-20 mA recorder outputs, and one dedicated buffered output.

Communication interface: Ethernet and RS232/485 serial ports.

4、 Installation and Maintenance

Please ensure that the module is properly connected and secured in the appropriate position during installation.

Regularly check the connection and working status of the module, and promptly handle any abnormalities.

If configuration or maintenance is required, please refer to the user manual and software guide for operation.

5、 Safety precautions

Do not use this module in damp, high temperature, high pressure, or strong magnetic field environments.

Do not disassemble or modify the internal structure of this module without authorization.

When using this module, please ensure that the connection is correct and stable to avoid short circuits or overloads.

6、 Other information

As a member of the Bently Nevada 1900 Protection Monitor product line, this module inherits its flexibility and low-cost features, providing users with a cost-effective solution.

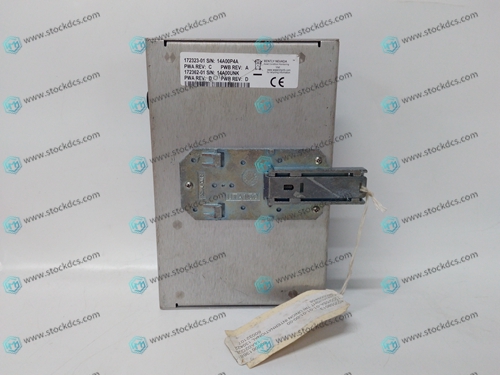

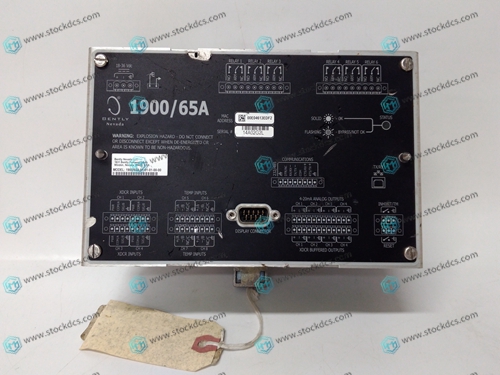

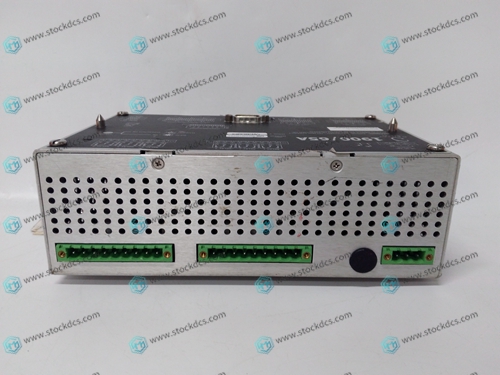

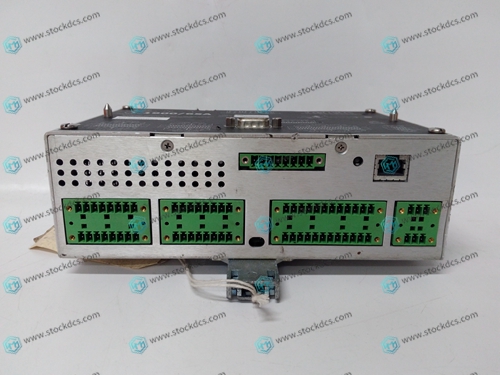

Product image
