07AC91 GJR5252300R0101 Analog Input/Output Module Manual

1、 Product Overview

07AC91 GJR5252300R0101 is a high-performance analog input/output module produced by ABB, designed specifically for industrial automation systems. This module supports the input and output of analog signals, enabling precise data acquisition and control, and is widely used in various industrial automation fields.

2、 Main technical parameters

Number of analog channels: 16 analog channels, configurable in two operating modes.

Operation mode "12 bits": 8 analog inputs (terminals 4 to 19) plus 8 analog outputs (terminals 27 to 42).

Operation mode "8-bit": 16 analog channels can be configured in pairs as inputs or outputs.

Signal range:

Analog input/output can be configured as ± 10 V or 0... 20 mA.

Resolution:

The minimum difference that can be detected on the simulation side (e.g. 40mV within the range of 0... 10V) will cause a change in the numerical values in the PLC program.

Power input: DC (9-36) V wide power input.

Protection level: IP30.

Communication interface: Supports communication interfaces such as Profibus DP bus, achieving high-speed long-distance transmission, electrical and ground isolation, and reducing interference.

3、 Functional characteristics

High resolution: Provides 12 or 8-bit analog input and output functions, meeting high signal accuracy requirements for applications.

Dual Profibus DP Bus Support: Supports logically independent dual Profibus DP buses and supports predetermined communication rates in standard specifications.

Modular design: Easy to install, maintain, and upgrade, reducing system maintenance costs.

Programmability: Allow users to configure and adjust analog input and output channels as needed to meet specific application requirements.

Real time monitoring: able to monitor the status of analog input signals and output signals in real time, and promptly identify and handle issues that may affect system operation.

Industrial grade design: Equipped with industrial grade design features such as lightning protection, overcurrent protection, and surge protection, ensuring reliability and safety in industrial environments.

4、 Installation and Configuration

Installation: The standard industrial 35mm guide rail installation method is used to ensure that the module is stably and reliably installed in the control cabinet.

Configuration: Use programming tools provided by ABB (such as Control Builder M) for programming and configuration to meet specific application requirements. During the configuration process, parameters such as analog input/output signal range and resolution can be set according to actual needs.

5、 Maintenance and upkeep

Regular inspection: Regularly inspect the appearance and connection status of the module to ensure that there is no damage or looseness. At the same time, check the connection of the power and signal lines to ensure reliable connection and no faults such as short circuits or open circuits.

Cleaning: Keep the module clean and dry to avoid dust and moisture affecting the equipment. If necessary, dry compressed air can be used for cleaning.

Safe operation: During installation, configuration, and maintenance, please follow relevant safety operation regulations to ensure the safety of personnel and equipment.

6、 Precautions

Do not use the module within the specified working environment temperature and humidity range.

Do not make unauthorized modifications or modifications to the module to avoid affecting its normal operation and performance.

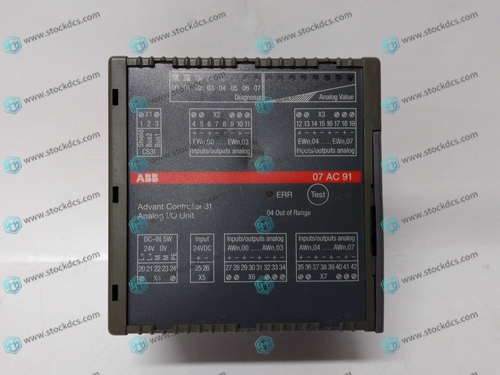

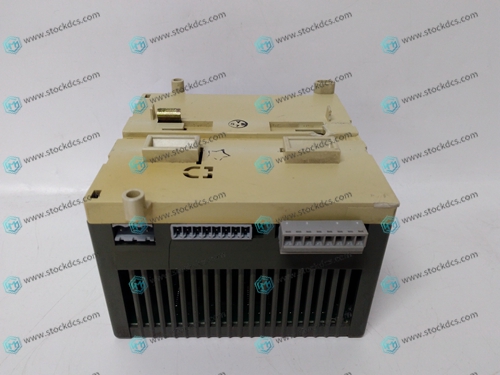

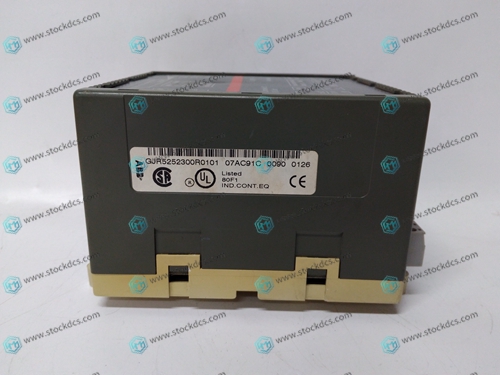

Product image
