6637517A1 660-MISC-3311 Backboard Control Circuit Board

6637517A1 660-MISC-3311 Backboard Control Circuit Board

Product Details Introduction

6637517A1 660-MISC-3311 Backboard Control Circuit Board Manual

1、 Product Overview

6637517A1 660-MISC-3311 is a backplane control circuit board suitable for industrial automation and control system fields. This product has high flexibility and reliability, and can meet various complex control needs.

2、 Product specifications

Model: 6637517A1 660-MISC-3311

Brand: BAILEY

Specification: 253232 (unit not specified, may be centimeters or millimeters)

Color: Standard (usually green or other industrial colors)

Weight: 0.12 kilograms

Imported or not: Yes

3、 Product features

Flexibility: Designed to be flexible and suitable for various control systems and configurations.

Complete functions: As a backplane control circuit board, it provides comprehensive control functions to ensure the stable operation of the system.

Industrial grade standard: Meets industrial grade design standards and can work stably in harsh industrial environments.

4、 Technical parameters

Operating System: Industrial Control System

Output frequency: 60 (unit not specified, may be Hz)

5、 Installation and debugging

Installation:

Please ensure to check the integrity of the circuit board before installation to ensure that there are no damaged or missing components.

Install the circuit board correctly in the corresponding control system to ensure that all connections are firm and reliable.

During the installation process, please follow the relevant safety regulations and operating guidelines.

Debugging:

Before powering on, please conduct a visual inspection to ensure that the circuit board is free of substances such as welding slag, solder balls, etc. that may cause short circuits.

Use a multimeter to check for power short circuits and ensure that there is no short circuit between the input and output terminals of the power supply and the ground.

Check if the wiring is correct, including incorrect, insufficient, and excessive wiring.

For polarized components, please check if their pins correspond and perform necessary tests.

6、 Precautions

Do not use this circuit board under ambient temperature and humidity conditions that exceed the product specifications.

During installation and debugging, please ensure that the power is turned off and follow the relevant safety operating procedures.

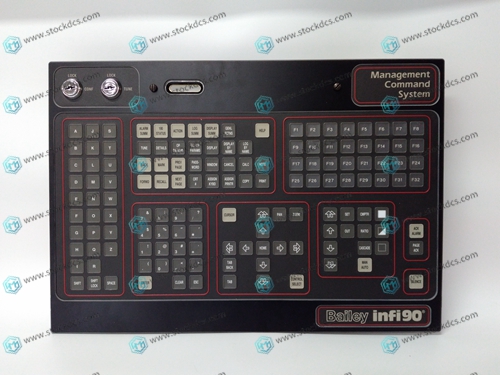

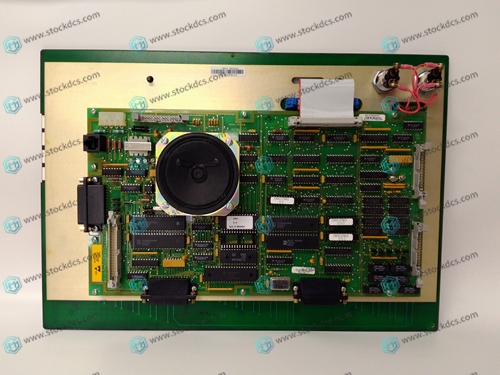

Product image
