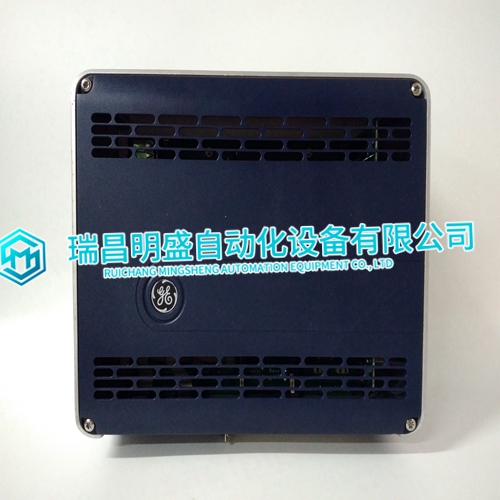

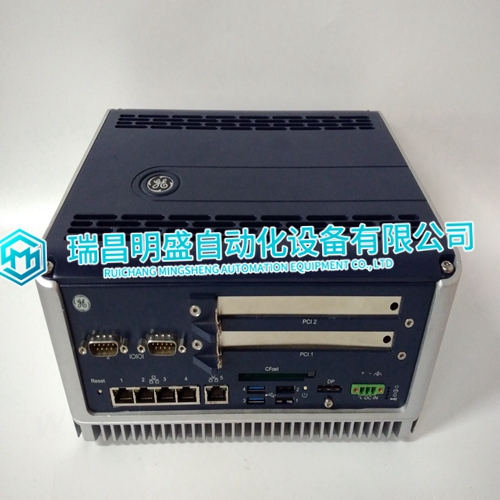

GE 04220FL11232A relay

Digital output module not enabled Address set on switch S1 not the same as address in control module configuration FC 83, S1 Change address on S1 switch to match FC 83, S1 OR Change address in FC 83, S1 to match S1 switch setting Dipshunt not properly installed between control module and digital output module Verify dipshunt is installed properly (no bent pins) in I/O expander bus socket on MMU backplane between control and digital output module Control module configuration is not correct Verify FC 83 is in control module configuration No power to digital output module Module not completely inserted in MMU Verify module is completely inserted in MMU: faceplate flush with MMU and captive retaining screws latched

Control Module Errors

 The control module performs status checks on the DSO module. An error will appear in the report function of an operator interface. Refer to the Product Instruction for the operator interface being used (Table 1-2) for an explanation of these reports. Function Code (FC) 83 output block N in the control module configuration is the DSO status flag (logic 0=good; logic 1=bad). You can use an operator interface to monitor this block. If the status flag is a logic 1, check the front panel module status LEDs and the operator interface report function to determine corrective actions. NOTE: If FC 83 specification S3 is set to 0, the control module will trip when the DSO module fails. Changing specification S3 to a 1 allows the control module to continue to operate if any DSO error condition exists.

The address set on address switch S1

 and in the control module configuration must be the same. The control module generates a MISSING SLAVE MODULE if they do not match. Verify that the address set on switch S1 is the same as the address in FC 83 specification S1. If not: 1. Remove the module and change the setting of address switch S1 to correspond with the control module configuration (refer to INSTALLATION in Section 3 for the procedures to set an address and to install a digital output module). OR 2. Modify the address in the control module configuration (FC 83 specification S1) to correspond with the address set on address switch S1 of the digital output module. Use an INFI 90 OPEN operator interface to modify the configuration. For procedures on how to modify a function code specification, refer to the applicable instruction manual for the operator interface being used.

The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.
