Product Details Introduction

Summary of PP845 3BSE042235R1 Touch Screen Manual

1、 Product Overview

The PP845 3BSE042235R1 touch screen is a high-performance industrial touch screen launched by ABB, designed specifically for industrial automation systems. It adopts a touch screen design, providing an intuitive operating experience and supporting various functions such as monitoring, control, data browsing, etc. to meet the needs of different application scenarios.

2、 Technical specifications

Display screen:

Type: High resolution LCD display screen

Resolution: 800 x 600 pixels

Display color: 64K color

Backlight lifespan (at+25 ° C):>50000 hours

Physical properties:

Front panel dimensions: width x height x depth=302 x 228 x 6 millimeters

Installation depth: 58 mm (including clearance, 158 mm)

Front panel seal rating: IP 66

Rear panel seal rating: IP 20

Touch screen material: polyester glass, supporting 1 million finger touch operations

Weight: 2.1 kilograms

Interface and Communication:

Serial port:

RS422/RS485: 25 pin D-shaped sub contact

RS232C: 9-pin D-sub contact

Ethernet interface: shielded RJ 45

USB interface: Type A (USB 1.1), maximum output current 500mA

CF slot: Compact flash memory, supports Type I and II

Power and environment:

Power supply voltage:+24V DC (20-30V DC)

Maximum power consumption: normal 0.5 A, maximum value 1.0 A

Working temperature range:

Vertical installation: 0 ° to+50 ° C

Horizontal installation: 0 ° to+40 ° C

Storage temperature: -20 ° C to+70 ° C

Relative humidity: 5-85% non condensing

Other features:

Real time clock battery: CR2450, with a minimum lifespan of 3 years

CE, UL, and cUL certifications

3、 Functional characteristics

User friendly: Touch screen design provides an intuitive operating experience.

High resolution display: able to clearly display various information and graphics, making operations more intuitive and clear.

Multiple functions: supporting monitoring, control, data browsing and other functions to meet the needs of different application scenarios.

Flexible Configuration: Supports flexible configuration and customization, allowing users to configure screen layout and display content according to specific needs.

Communication interface: With multiple communication interfaces, it can communicate with control equipment such as PLC and DCS, achieve data exchange and remote control.

4、 Installation and Maintenance

Please follow the instructions in the product manual during installation to ensure that the touch screen is installed in the appropriate position and correctly connected to other devices. Regularly clean the touch screen and surrounding environment to avoid damage to the equipment caused by dust and moisture. If you have any questions or malfunctions, please contact ABB's technical support team.

5、 Precautions

During installation and use, please follow the operating instructions and safety precautions in the product manual.

Unauthorized modifications or disassembly of the touch screen are prohibited to avoid damaging the device or affecting performance.

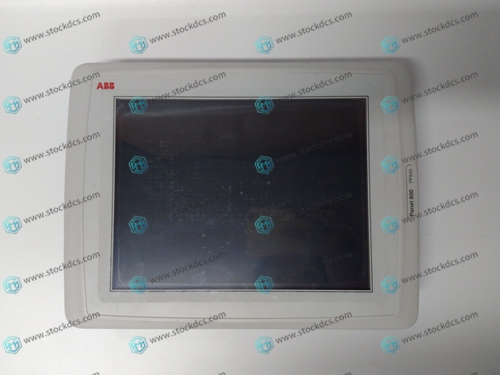

Product image
