RADISYS EXP-VID-B Control Pulse Card
Product Details Introduction
RADISYS EXP-VID-B Control Pulse Card is a module used in industrial automation and motion control systems, mainly for generating and controlling pulse signals to achieve precise motion control and synchronous operation. The following is the basic information and main characteristics of the card:
Basic information
Manufacturer: RADISYS
Model: EXP-VID-B
Type: Control pulse card
Function and features
Pulse generation: capable of generating high-precision pulse signals for controlling moving components such as stepper motors and servo motors.
Synchronous control: Supports multi axis synchronous control to achieve complex motion paths and operations.
Multiple control modes: Supports various control modes such as position control, speed control, and torque control.
High reliability: Industrial grade design, capable of long-term stable operation in harsh environments.
Rich I/O interfaces: equipped with multiple input/output interfaces, making it easy to connect with other control devices and sensors.
technical parameter
Pulse frequency: Supports high-frequency pulse output, specific frequency range needs to be consulted in the product manual.
Control Axis Number: Supports multi axis control, specific supported axes need to be consulted in the product manual.
Communication interface: It may support RS-232, RS-485, Ethernet and other interfaces for communication with the main control system.
Input voltage: The specific voltage range needs to be consulted in the product manual.
Working temperature range: usually -40 ° C to+85 ° C, suitable for various industrial environments.
Application scenarios
Industrial automation: used to control moving components in production lines, such as robotic arms, conveyor belts, etc.
CNC machine tool: Control the motion axis in CNC machine tools to achieve high-precision machining.
Robot control: used for precise control of robot joints, supporting complex action arrangements.
Packaging machinery: Control the moving parts in packaging machinery to achieve synchronous packaging and precise control.
Precautions for use
Installation and maintenance: Ensure installation in a dry and dust-free environment, and regularly inspect and maintain to ensure long-term stable operation.
Electrical connection: Strictly follow the instructions in the product manual for electrical connection to avoid equipment damage caused by incorrect connections.
Software configuration: Use the software provided by the manufacturer for configuration and debugging, ensuring compatibility with the system and optimizing performance.

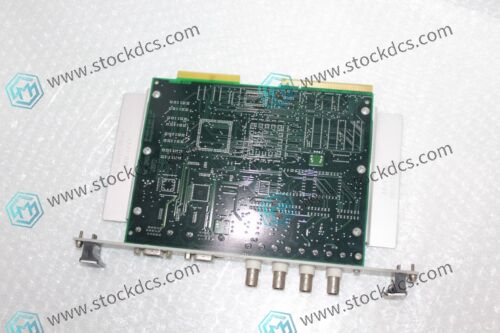

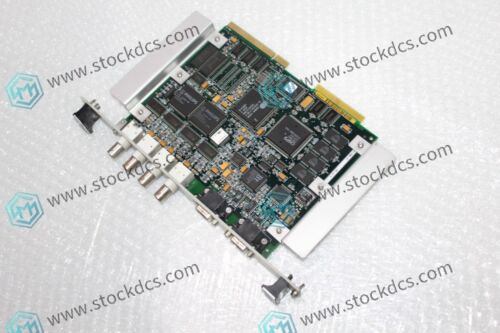

Product image
