RadiSys CEQM67-2515-0 Control Board Card

RadiSys CEQM67-2515-0 Control Board Card

Product Details Introduction

The RadiSys CEQM67-2515-0 control motherboard card is a control motherboard designed for embedded systems. The following is general information and main features about this product:

Basic information

Manufacturer: RadiSys

Model: CEQM67-2515-0

Type: Control motherboard card

Main features and functions

Processor: Typically equipped with high-performance Intel processors, such as the Core i7/i5/i3 series, used to handle complex control and data processing tasks.

Chipset: Using the Intel QM67 chipset, it provides powerful system performance and multiple expansion features.

Memory: Supports DDR3 memory, typically with multiple memory slots, and supports maximum capacity memory expansion.

Graphics processing: Integrated with Intel HD Graphics, supporting high-definition video and graphics processing needs.

Interface: Provides a variety of external interfaces, including multiple USB ports, serial ports, Gigabit Ethernet ports, audio interfaces, etc., making it easy to connect various external devices and sensors.

Scalability: Supports PCI Express slots, Mini PCIe slots, etc., allowing the addition of additional functional modules and cards to meet the specific needs of different applications.

Industrial grade design: The design meets industrial standards and has characteristics such as high temperature resistance, vibration resistance, and dust prevention, suitable for harsh industrial environments.

technical parameter

Processor support: Supports second-generation Intel Core i7/i5/i3 processors, specific models need to be confirmed based on actual configuration.

Memory support: Supports DDR3 SDRAM, typically supporting a maximum memory capacity of 32GB.

Storage: Provides SATA interface and supports solid-state drives (SSDs) or traditional mechanical hard drives for system and application storage.

Graphics support: Integrated with Intel HD Graphics, supports high-definition video and graphics processing.

Network: Integrated with a Gigabit Ethernet controller, providing stable network connectivity.

Power demand: Usually DC power supply, specific power demand depends on configuration.

Application scenarios

Industrial automation: used for controlling and monitoring automated production lines, executing complex process flows and data processing tasks.

Medical equipment: As the control core of medical imaging equipment and laboratory analysis equipment, it supports high-precision data processing and rapid response.

Communication equipment: Used as a controller for network devices, handling data traffic, routing, and security management.

Embedded system: Used for various embedded systems, such as traffic control systems, security monitoring systems, etc., providing stable and reliable control and data processing capabilities.

Precautions for use

Heat dissipation management: Design a well-designed heat dissipation plan to ensure system stability and longevity during high load operations.

Environmental adaptability: Follow the operating temperature range and environmental conditions in the product manual to ensure that the controller operates under normal operating conditions.

Software compatibility: Ensure the selection and configuration of appropriate operating systems and application software to fully utilize the functionality and performance of the controller.

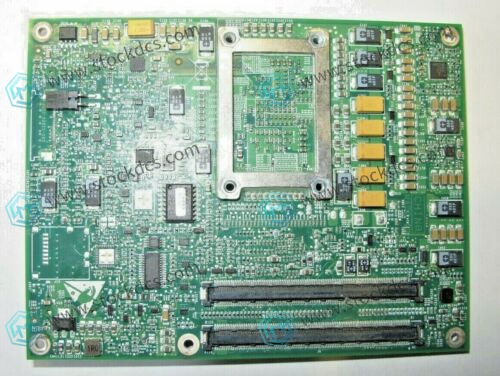

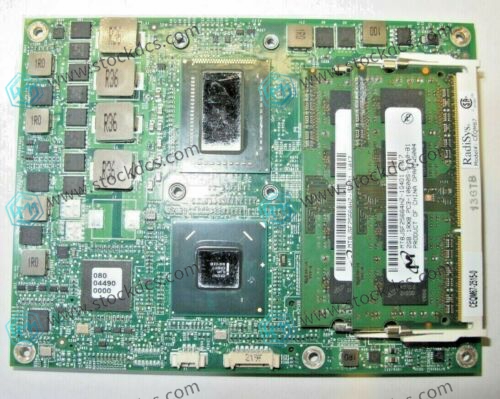

Product image
