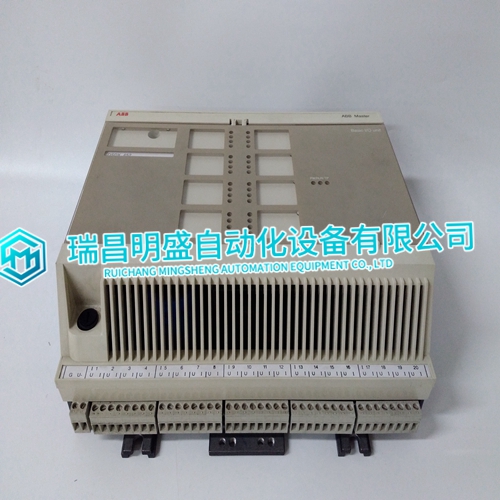

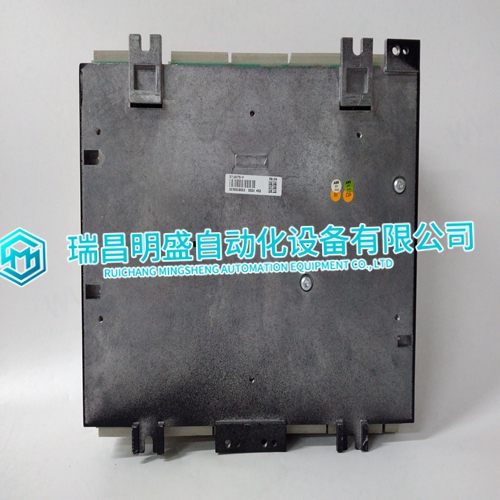

DSDX452 5716075-P Digital module

　　The CPU has not enough memory for configuration or background diagnosis of PM810 Reduce memory required by application Illegal station address The station address defined in Advant Station 100 Series Engineering Station differs from that adjusted at rotary switches on PM810 Use same station addresses in Advant Station 100 Series Engineering Station and at rotary switches DSP with errors detected Background diagnosis has found erroneous DSPs. For detailed information perform module/channel diagnosis by means of diagnosis tool. Error during BAP access Background diagnosis has found an error when accessing Advant Fieldbus 100 communication interface (BAP) on PM810 For detailed information perform module/channel diagnosis by means of diagnosis tool.

Defining the Communication Interface CI810

  The CI810 communication interface is defined in an Advant Controller 110/410/450 and is used to control the S800 I/O station. The CI810 is connected to the Advant Controller via Advant Fieldbus 100. The DB element for the CI810 communication interface is shown in Figure 42. Setting the CI810 Operational The Advant Controller configures and sets the CI810 to operational automatically when the S800 I/O is configured in the database. The own station communication interface must however first has been set to operational by the Advant Controller. For setting up and configuring the S800 I/O station refer to S800 I/O User’s Guide. Removing a CI810 When the CI810 and the S800 I/O system is to be permanently removed, all configured CDP’s must be deleted. This is done by either resetting the IMPL flag or performing a DDB command to the S800 I/O station DB element. Replacing the communication interface with another CI810 communication interface, see In Operation with Error Indications on page 217.

CI810 Status Information

   The status information of the communication interface, CI810, is available with the DB element S800 I/O Station. The status of the CI810 is given by the DIAG terminal in the S800 I/O Station DB element. The following status information is given on the DIAG terminal: ACT CI810 is operating. IDF Identity failure. SE Severe Error: Severe errors in the station. HWE Station Hardware Error. An error in CI810 Hardware. SWE Station Software Error. Restart of the CI810 should probably clear the error. PHE Peripheral Hardware error. Hardware error or missing hardware.To remove the S800 I/O station, perform the following steps: • Reset the IMPL terminal or perform a DDB command on the CI810 data base element. • Remove the Advant Fieldbus 100 from the CI810.
