Alstom PIB 504 fiber optic interface module

Alstom PIB 504 fiber optic interface module

Product Details Introduction

The Alstom PIB 504 fiber optic interface module is a network communication module used in industrial automation and power systems, providing high-speed fiber optic communication capabilities to ensure fast and reliable transmission of data between devices and systems. Here are some detailed information about the fiber optic interface module:

major function

High speed data transmission: High speed data communication is achieved through optical fibers, suitable for large data transmission and real-time control applications.

Long distance communication: Fiber optic communication supports long-distance data transmission, reduces signal attenuation, and improves communication quality.

Anti interference capability: Optical fibers have strong anti electromagnetic interference capabilities, ensuring stable operation in harsh industrial environments.

Network redundancy: Supports network redundancy functionality to improve system reliability and availability.

Specifications and characteristics

Interface type: Standard fiber optic interface (such as SC, ST, etc.), compatible with various fiber optic connectors.

Transmission speed: Supports multiple speeds (such as 100 Mbps, 1 Gbps) to meet different application requirements.

Fiber type: Compatible with multimode and single-mode fibers, suitable for different fiber communication distances and bandwidth requirements.

Protocol support: Supports multiple industrial communication protocols, such as Modbus TCP/IP, EtherNet/IP, Profinet, etc.

Reliability design: It has industrial grade reliability and is suitable for long-term operation in harsh environments.

application area

Power system: Used for equipment communication between substations and distribution systems, ensuring real-time monitoring and control, and improving system safety and stability.

Industrial automation: In automated production lines and control systems, high-speed and stable data communication is achieved to improve production efficiency.

Transportation: In railway and subway systems, provide communication interfaces between onboard equipment and ground control centers to ensure the safe operation of the transportation system.

Renewable energy: Monitor and control various equipment in solar and wind energy systems to optimize energy management.

Installation and maintenance

Easy to install: Modular design, providing detailed installation guidelines for quick installation and configuration.

Debugging and testing: Conduct comprehensive debugging and testing before putting into use to ensure the reliability and stability of the module during actual operation.

Easy maintenance: Supports online monitoring and remote diagnosis, making it convenient for maintenance personnel to troubleshoot and update the system.

Common problems and solutions

Unstable connection: Check the fiber optic connector and cable to ensure a stable and undamaged connection; Verify if the type and transmission distance of the fiber match.

Low data transmission rate: Check network settings and device load to ensure that the module is working at its optimal state; Confirm that the fiber optic cable and equipment used support the required transmission rate.

Signal loss: Check the fiber optic connectors and connection paths to ensure no damage or bending; Verify the quality and applicability of optical fibers.

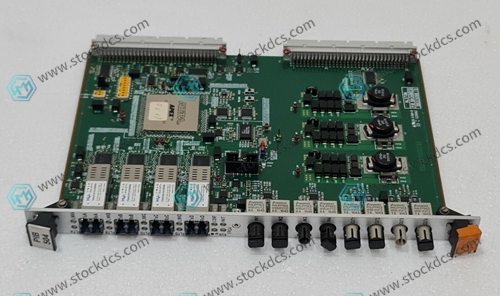

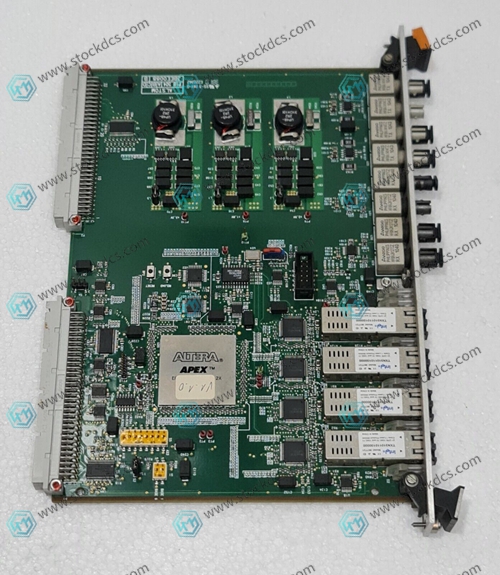

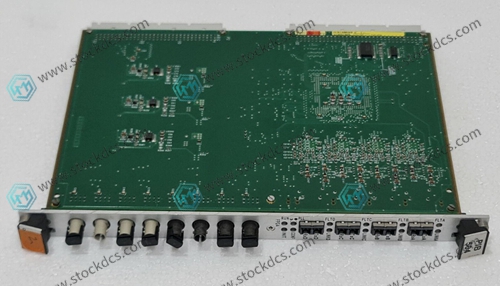

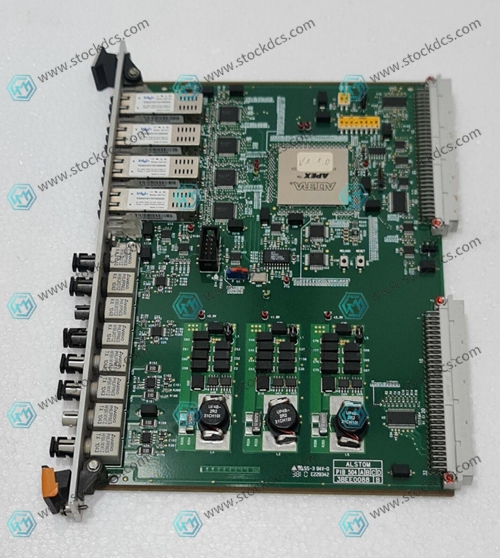

Product image
