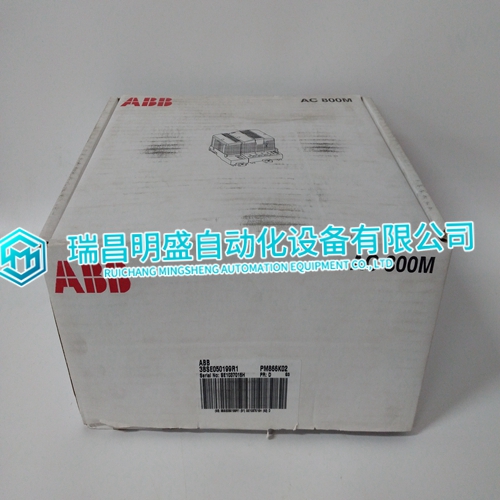

PM866K02 3BSE050199R1 processor module

If the IMFEC1
module is faulty, replace it with a new one. Do not try to repair the module; replacing components may affect the performance of the module. The module may be removed while system power is supplied. To replace a module: 1. Push and turn the two front panel captive latches ½-turn to release the module. It is released when the slots on the screws are vertical and the open end of the slots faces away from the module. 2. Grasp the module faceplate and pull the module out of the module mounting unit (MMU). 3. Configure the replacement module switch and jumper settings. Insure they are set the same as the original module. 4. In the same slot assignment as the original module, align the replacement module with the guide rails in the module mounting unit. Slide it in until the faceplate is flush with the top and bottom of the MMU frame. 5. Push and turn the two captive latches on the module faceplate ½-turn to lock the module in place. 6. Return to normal operation.

REPLACEMENT PARTS AND ORDERING INFORMATION

Order replacement parts through a Elsag Bailey sales or service office. Provide the following information: 1. Part description, part number and quantity. 2. Model and serial number (if applicable) and ratings of the assembly for which the part has been ordered. 3. Elsag Bailey instruction number, page number and reference figure that identifies the part. When ordering parts, use part numbers and part descriptions from equipment manuals. Parts with no commercial description must be ordered from the nearest sales or service office. Recommended spare parts lists, including prices, on standard assemblies are available through the nearest sales or service office.

TRAINING

 Elsag Bailey has a modern training facility available for training your personnel. On-site training is also available. Contact a Elsag Bailey sales office for specific information and scheduling. TECHNICAL DOCUMENTATION Additional copies of this instruction, or other Elsag Bailey instructions, can be obtained from the nearest Elsag Bailey sales office at a reasonable charge.Elsag Bailey is always ready to assist in the operation and repair of its products. Send requests for sales or application services to the nearest sales or service office. Elsag Bailey can also provide installation, repair and maintenance contract services.
