Multilin 269PLUS-DO-311 motor management relay

Multilin 269PLUS-DO-311 motor management relay

Product Details Introduction

GE Multilin 269PLUS-DO-311 is an advanced motor management relay designed specifically for motor protection and management in power systems. It integrates multiple functions, providing comprehensive motor protection, monitoring, and control. The following is the detailed information of the relay:

Product Overview

Model: 269PLUS-DO-311

Product Type: Motor Management Relay

main features

Comprehensive motor protection: Provides comprehensive motor protection functions, including overload protection, locked rotor protection, thermal protection, undervoltage protection, overvoltage protection, etc.

Real time monitoring: It can monitor the operating status and performance of the motor in real time, including parameters such as current, voltage, power factor, etc.

High precision measurement: Provides high-precision measurement and protection functions to ensure the safe and efficient operation of the motor.

User Interface: Equipped with an intuitive graphical user interface (GUI) for easy user configuration, operation, and monitoring.

Communication capability: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with other devices and systems.

technical specifications

Model: 269PLUS-DO-311

Protection function:

Overload protection: detects and responds to situations where the motor load exceeds the set value.

Locking protection: prevents the motor from running in a locked state, reducing the risk of damage.

Thermal protection: Monitor the temperature of the motor to prevent overheating.

Undervoltage protection: prevents the motor from operating under undervoltage conditions and avoids damage.

Overvoltage protection: prevents the motor from operating under overvoltage conditions, ensuring system stability.

Data collection: supports real-time collection and analysis of parameters such as current, voltage, and power factor.

Display and Interface: Equipped with a high-resolution display screen and user-friendly interface.

Communication interface: Supports multiple communication protocols, such as Modbus, DNP3, IEC 61850, etc.

Environmental temperature: typically suitable for a working temperature range of 0 ° C to 50 ° C.

Installation method: Supports panel installation or DIN rail installation.

application area

Motor protection: used to protect motors in the power system and ensure their safe operation.

Industrial automation: Provide motor protection and management functions in industrial automation systems.

Building power management: applicable to motor protection and control inside buildings to prevent equipment damage.

Installation and maintenance

Installation: The device is usually installed through a panel or DIN rail. Please refer to the product manual for specific instructions.

Maintenance: The design is simple and easy to maintain and inspect on a daily basis. It is recommended to regularly check the equipment status and connection wires to ensure normal operation.

advantage

High performance protection: Provides comprehensive motor protection functions to ensure the safe and efficient operation of the motor.

Flexibility: Supports multiple protection functions and configuration options to adapt to different motor application requirements.

Compatibility: Supports multiple communication protocols for easy integration with other devices and systems.

User friendly: Equipped with an intuitive interface and features, it simplifies the operation and configuration process.

summary

The GE Multilin 269PLUS-DO-311 motor management relay is a high-performance, comprehensive device designed specifically for motor protection and management. Its comprehensive protection function, high-precision measurement, and powerful communication capability make it an ideal choice for power systems and industrial automation applications.

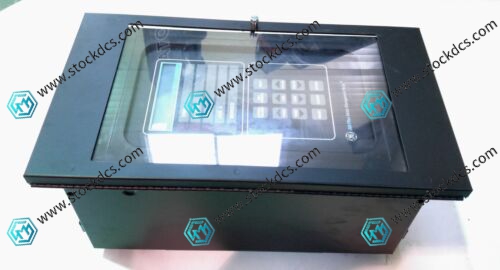

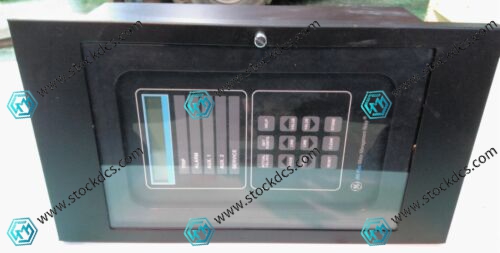

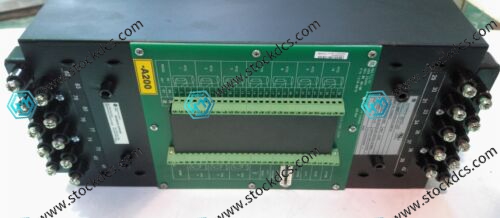

Product image
