MULTILIN 369-HI-0-M-0-E motor management relay

MULTILIN 369-HI-0-M-0-E motor management relay

Product Details Introduction

GE Multilin 369-HI-0-M-0-E is a high-performance motor management relay designed to provide motor protection, monitoring, and control. It integrates multiple protection functions and is suitable for various power systems and industrial applications. The following is the detailed information of the relay:

Product Overview

Model: 369-HI-0-M-0-E

Product Type: Motor Management Relay

main features

Multi functional protection: It integrates multiple motor protection functions, such as overload protection, locked rotor protection, thermal protection, undervoltage protection, overvoltage protection, etc.

Advanced control function: supports automatic restart, logic control, delayed operation and other functions, providing flexible motor control solutions.

Real time monitoring: It can monitor the operating status and performance of the motor in real time, including parameters such as current, voltage, and power.

User Interface: Equipped with an intuitive graphical user interface (GUI) for easy configuration, operation, and monitoring.

Communication capability: Supports multiple communication protocols (such as Modbus DNP3、IEC 61850）， Facilitate integration with other devices and systems.

technical specifications

Model: 369-HI-0-M-0-E

Protection function:

Overload protection: detects the situation where the motor load exceeds the preset value and triggers protective measures.

Locking protection: prevents the motor from running in a locked state, reducing the risk of equipment damage.

Thermal protection: Monitor motor temperature to prevent overheating.

Undervoltage protection: prevents the motor from operating under undervoltage conditions, ensuring equipment safety.

Overvoltage protection: prevents the motor from operating under overvoltage conditions, ensuring system stability.

Control functions: including automatic restart, delayed operation, logic control, etc., suitable for various control needs.

Data collection: supports real-time collection and analysis of parameters such as current, voltage, and power factor.

Display and Interface: High resolution display screen and user-friendly interface.

Communication interface: Supports multiple communication protocols, such as Modbus, DNP3, IEC 61850.

Environmental temperature: typically suitable for a working temperature range of 0 ° C to 50 ° C.

Installation method: Supports panel installation or DIN rail installation.

application area

Motor protection: used for motor protection in power systems to ensure their safe and stable operation.

Industrial Automation: Provides motor protection and control functions, suitable for industrial automation systems.

Building power management: applicable to the protection and management of motors inside buildings to prevent equipment damage.

Energy management: Provide detailed motor operation data and protection functions to help optimize energy use.

Installation and maintenance

Installation: The device is usually installed through a panel or DIN rail. Please refer to the product manual for specific instructions.

Maintenance: The design is simple and easy to maintain and inspect on a daily basis. It is recommended to regularly check the equipment status and connection wires to ensure normal operation.

advantage

Comprehensive protection: integrates multiple protection functions to ensure the safe operation of the motor.

Flexible control: Provides multiple control options to adapt to different application needs.

Powerful communication capability: Supports multiple communication protocols, making it easy to integrate with other devices and systems.

User friendly: intuitive user interface and functionality, simplifying the operation and configuration process.

summary

The GE Multilin 369-HI-0-M-0-E motor management relay is a high-performance protection and control device designed specifically for motor management. Its comprehensive protection functions, advanced control capabilities, and powerful communication capabilities make it an ideal choice for various power and industrial applications.

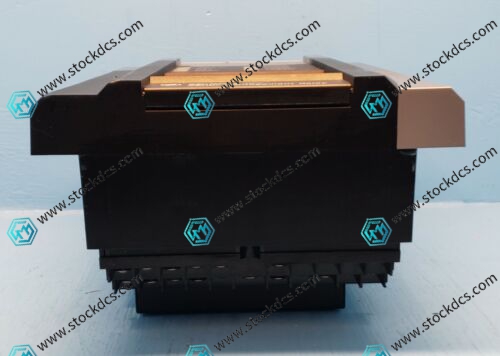

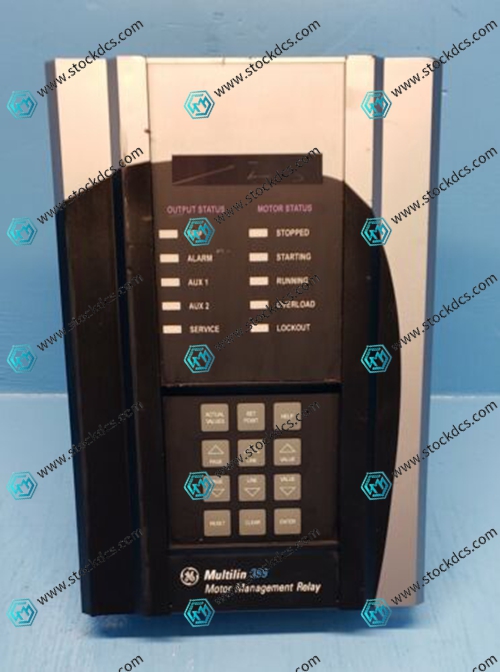

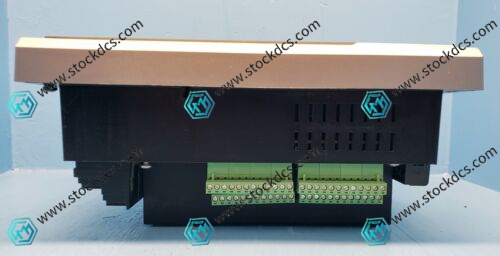

Product image
