MULTILIN UR8NH Multi Layer UR Module

MULTILIN UR8NH Multi Layer UR Module

Product Details Introduction

GE Multilin UR8NH is a multifunctional, modular UR (Universal Relay) protection module designed specifically for the protection, monitoring, and control requirements in complex power systems. As part of the UR series, it provides rich functionality and flexible configuration options to meet the needs of various application scenarios.

Product Overview

Model: UR8NH

Product type: Multi functional UR module

main features

Multi layer protection: supports multi-level protection functions, including overcurrent, undervoltage, overvoltage, ground fault, etc., suitable for a wide range of power system protection needs.

Advanced Control Function: Provides advanced control functions such as automatic restart, logic control, and delayed operation, which can meet complex control requirements.

Real time monitoring: capable of monitoring system status in real-time, including current, voltage, power factor, etc., to help optimize system operation.

User Interface: Equipped with an intuitive graphical user interface (GUI) for easy operation and configuration.

Flexible configuration: Modular design allows for the configuration of different functional modules according to actual needs, providing a high degree of flexibility and adaptability.

Powerful communication capability: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, making it easy to integrate with other systems and devices.

technical specifications

Model: UR8NH

Protection function:

Overcurrent protection: detects and responds to situations where the current exceeds the set value.

Undervoltage/Overvoltage Protection: prevents abnormal voltage from causing damage to equipment.

Ground fault protection: Monitor ground faults and provide protection.

Thermal protection: prevents equipment from being damaged due to overheating.

Control function: supports automatic restart, delayed operation, logic control, etc.

Data collection: Real time collection and analysis of current, voltage, power factor, and other data.

Display and Interface: Equipped with a high-resolution display screen and user-friendly interface.

Communication interface: Supports multiple communication protocols, including Modbus, DNP3, IEC 61850, etc.

Environmental adaptability: Suitable for a working temperature range of 0 ° C to 50 ° C, meeting various industrial environmental requirements.

Installation method: Supports panel installation or DIN rail installation.

application area

Power system protection: used for comprehensive protection in the power system to ensure the safe and stable operation of the system.

Industrial automation: integrated into industrial automation systems to provide protection and control functions.

Building power management: used for the protection and management of the power system inside buildings, ensuring the safe operation of equipment.

Energy management: used in energy management systems for real-time monitoring and optimization of electricity usage.

Installation and maintenance

Installation: The device is usually installed through a panel or DIN rail. Please refer to the product manual for specific installation steps.

Maintenance: The design is simple and easy to maintain and inspect on a daily basis. It is recommended to regularly check the equipment status and connection wires to ensure normal operation.

advantage

Comprehensive protection: integrates multiple protection functions to ensure the safe and stable operation of the power system.

Flexible configuration: Modular design provides a high degree of flexibility, allowing for configuration and expansion as needed.

Powerful communication capability: Supports multiple communication protocols, making it easy to integrate with other systems and devices.

User friendly: The intuitive user interface and functions simplify the configuration and operation process.

summary

The GE Multilin UR8NH multifunctional UR module is a highly flexible and feature rich protection device suitable for protection and control applications in various power systems. Its modular design, advanced protection and control functions, and powerful communication capabilities make it an ideal choice for power and industrial automation applications.

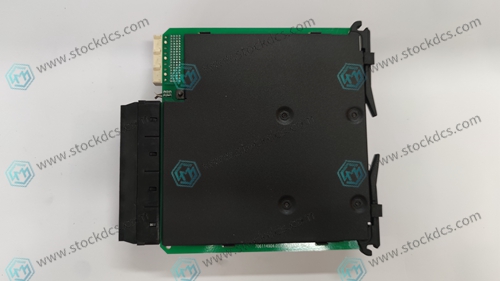

Product image
