Multilin 1219-0015-H3 Relay CT Board

Multilin 1219-0015-H3 Relay CT Board

Product Details Introduction

Multilin 1219-0015-H3 is a current transformer (CT) board used for current measurement and relay operation in protection and control systems. This board is designed to work with various protective relays from Multilin to provide accurate current measurement and protection functions.

Product Overview

Model: 1219-0015-H3

Brand: Multilin

Product type: CT (current transformer) board

Application area: Current measurement and protection in power systems

major function

Current measurement:

Provide accurate current measurement to ensure that protective relays can accurately identify and respond to faults.

Suitable for various current ranges and different types of power systems.

Protection function:

Support the connection and operation of various protective relays, providing overcurrent, differential, distance and other protection functions.

Ensure quick response and isolation of the fault area in the event of a power system failure.

Signal processing:

Process the current signal from CT and convert it into a signal format suitable for protecting relays.

Provide high-precision signal processing to ensure the reliability of the protection system.

technical specifications

Input current range: Suitable for multiple current levels and different power system configurations.

Output signal: Provide standardized output signals for easy connection with Multilin protection relays.

Working voltage: Adapt to different voltage levels of the power system to ensure stable operation.

Environmental adaptability: Designed for industrial environments, capable of stable operation under a wide temperature range and high humidity conditions.

Installation method: Supports panel installation and DIN rail installation for easy installation and maintenance.

application area

Transmission and distribution system protection: used for current measurement and protection in transmission and distribution networks to ensure the safe operation of the system.

Industrial power system protection: Protecting key equipment and lines in the industrial power system to ensure the stability of the production process.

Power plants and substations: Provide current measurement and protection functions in power plants and substations to ensure the safe operation of facilities.

Installation and maintenance

Installation:

Location: Installed inside the distribution cabinet or control cabinet, connected to current transformers and protective relays.

Method: Supports panel installation and DIN rail installation to ensure easy and secure installation.

maintain:

Regular inspection: Regularly check the connection and operation status of the CT board to ensure its normal operation.

Fault diagnosis: Utilize the diagnostic function of protective relays to promptly detect and solve potential problems.

Cleaning: Keep the CT board and connectors clean to prevent dust and dirt from affecting signal transmission.

advantage

High precision: Provides high-precision current measurement to ensure that the protective relay can accurately respond to faults.

Compatibility: Compatible with various protective relays from Multilin, forming a complete protection solution.

Reliability: Designed for industrial environments, it has high reliability and durability.

Flexibility: Adapt to various current levels and power system configurations to meet different application requirements.

summary

The Multilin 1219-0015-H3 CT board is a high-performance current measurement and protection device widely used in the protection and control of power systems. Its high precision, reliability, and flexibility make it an ideal choice in the field of power system protection.

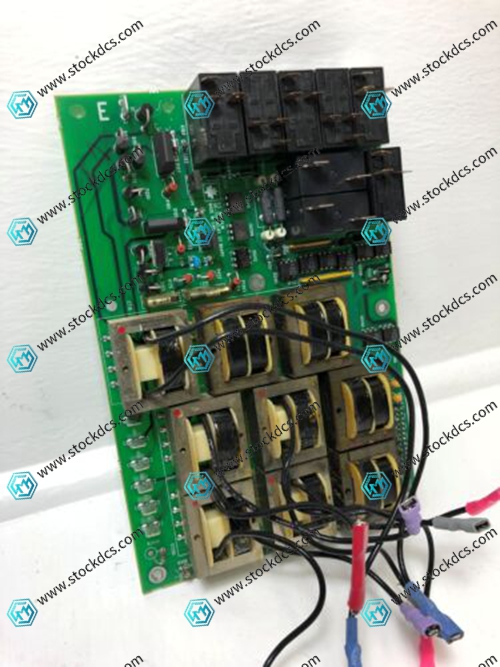

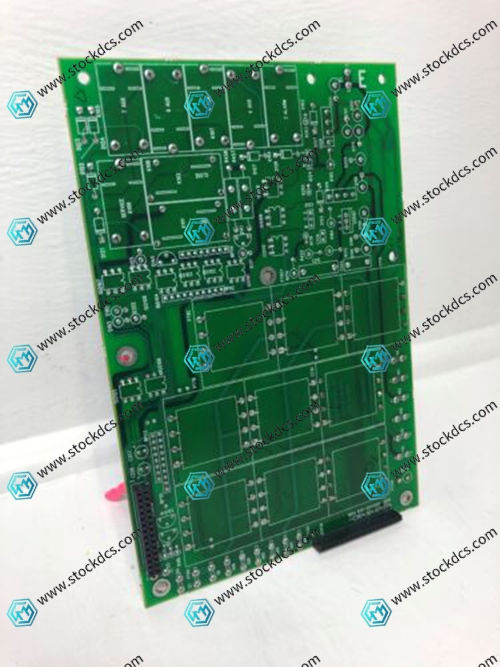

Product image
