MULTILIN 339-E-P5-G5-H motor protection system relay

MULTILIN 339-E-P5-G5-H motor protection system relay

Product Details Introduction

MULTILIN 339-E-P5-G5-H motor protection system relay is a high-performance motor protection relay in the GE Multilin series, designed specifically for the protection, monitoring, and management of electric motors. It plays an important role in power systems and industrial applications, providing comprehensive motor protection functions. The following are the main functions, characteristics, and application areas of the relay:

Main functions and features

Motor protection function:

Overcurrent protection: Provides multi-level overcurrent protection, including starting current, operating current, and short-circuit current protection.

Undervoltage protection: Monitor the voltage of the motor to prevent equipment damage caused by low voltage.

Overvoltage protection: prevents potential harm to the motor due to high voltage.

Thermal protection: Provide thermal protection based on the temperature and operating status of the motor to prevent overheating and damage.

Blocked rotor protection: detects the situation of motor blockage to prevent damage to the motor due to prolonged blockage.

Phase imbalance protection: Monitor the phase current balance of the motor to prevent faults caused by phase imbalance.

Real time monitoring and data collection:

Real time monitoring: Monitor the operating status of the motor, including current, voltage, power factor, temperature, etc.

Data recording: Record the operating data and fault events of the electric motor to support subsequent analysis and maintenance.

Automation and control functions:

Automatic restart: Supports automatic restart function, attempting to automatically restart the motor after device failure.

Remote control: Supports remote control and management through communication protocols, making it easy for operators to operate from remote locations.

Communication ability:

Communication Protocol: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with SCADA systems and other monitoring systems.

Data exchange: Provide real-time data exchange function to ensure efficient operation of the system.

User interface and configuration:

Display and operation interface: Equipped with an intuitive LCD display screen and operation interface, simplifying the configuration and monitoring process.

Configuration options: Users can flexibly configure protection parameters, control logic, and alarm conditions according to specific needs.

Reliability and stability:

Durability: Designed to meet industry standards, it has good durability and stability.

Anti interference: It has the ability to resist electromagnetic interference, ensuring stable operation in harsh environments.

Event recording and fault analysis:

Event log: Record the historical events and fault information of the device, and provide detailed event logs.

Fault diagnosis: supports fault diagnosis and analysis, helping to quickly identify and solve problems.

application area

Power distribution system:

Motor protection: Protecting motors in the power distribution system to ensure system stability and safety.

Distribution network automation: Improve the automation level of the distribution network, optimize power distribution and fault response.

power plant:

Generator protection: Protect the generator and its driving motor to ensure the stability and safety of the power generation process.

Equipment management: Provide comprehensive management and monitoring functions for power generation equipment.

Industrial facilities:

Production line protection: used for motor protection on industrial production lines to prevent equipment failures from affecting production.

Automation control: Improve the automation level of the production line, optimize operation and maintenance.

Water treatment facilities:

Pump station management: protect the water pump motor to ensure the normal operation of the water treatment process.

Operation optimization: Real time monitoring and optimization of equipment operation during water treatment process.

Building Management:

Building power distribution: protects the electric motors and equipment inside the building, and enhances the safety and reliability of the building's power system.

Facility management: Provide motor management and fault warning functions for building facilities.

conclusion

The MULTILIN 339-E-P5-G5-H motor protection system relay provides a reliable solution for power systems and industrial applications with its comprehensive motor protection functions, real-time monitoring, automation control, and communication capabilities. It not only protects the motor from various potential risks, but also supports remote monitoring and control, helping to improve the stability and operational efficiency of the system.

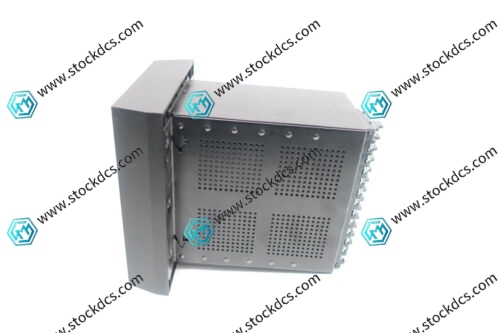

Product image
